CC1352R: Reference Design for 2.4 GHZ and 433 MHZ

Zach Reser

Part Number: CC1352R

I am looking to utilize the 1352R in an 433MHz and 2.4 GHZ (Bluetooth) application. Documentation seems to be missing ie (swrc352) and some matched-filter baluns are no longer available (Murata). I have already contacted Johanson to see if they could provide me any help. Unfortunately they couldn't offer me anything that would work for 433MHz . Is there a discrete component reference available or a recommended balun filter? Please help. I could even settle for the 1352P but don't really need the PA.

over 5 years ago

0 TER over 5 years ago

TI__Guru**** 317180 points

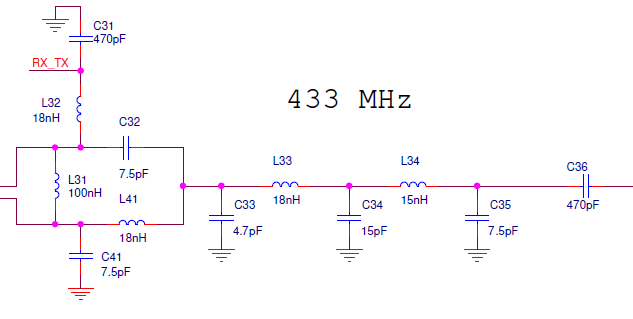

We haven't released a reference design for 433 MHz on CC1352R but this is the current BOM (0201 size from Murata):

This will be used on the CC1352P-4 Launchpad

0 Zach Reser over 5 years ago in reply to TER

Prodigy 30 points

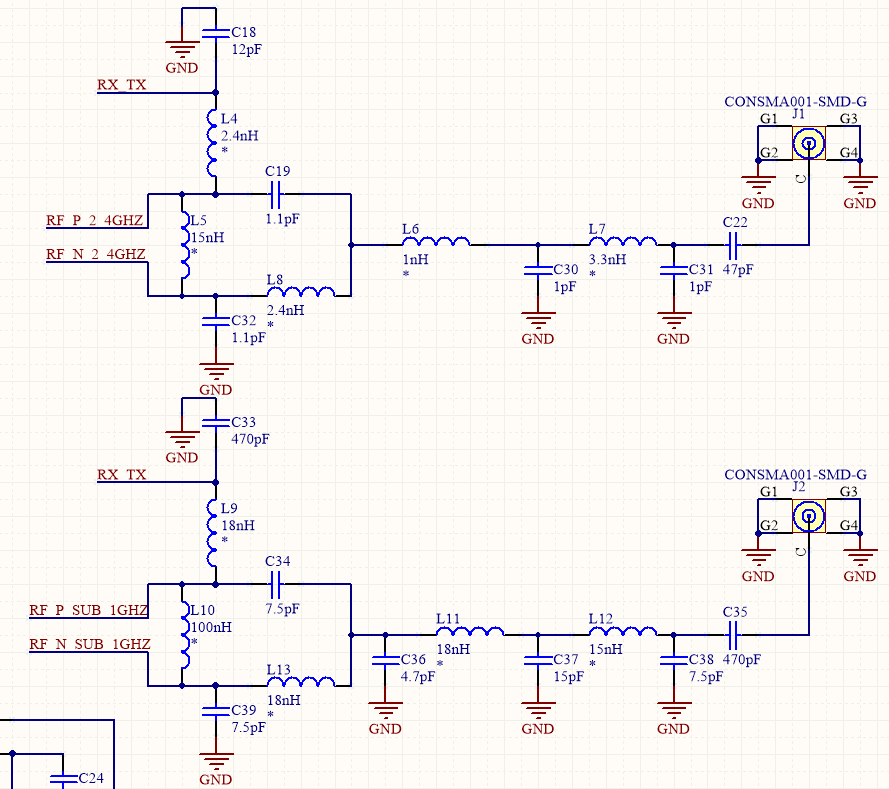

So as I understand it, this would be the combined circuit of 2.4GHz and 433MHz:

0 TER over 5 years ago in reply to Zach Reser

TI__Guru**** 317180 points

Yes. We are looking into a couple of different BOM versions for the 433 MHz and 2.4 GHz LP but what you have posted here is one option for the 2.4 GHz network.

Sub-1 GHz

Sub-1 GHz forum

CC1352R: Reference Design for 2.4 GHZ and 433 MHZ
