DRV8323: SLVA951 Layout Guide for the DRV832x Family of Three-Phase Smart Gate Drivers Documentation Error

Tom Kawamura

Part Number: DRV8323

Hi,

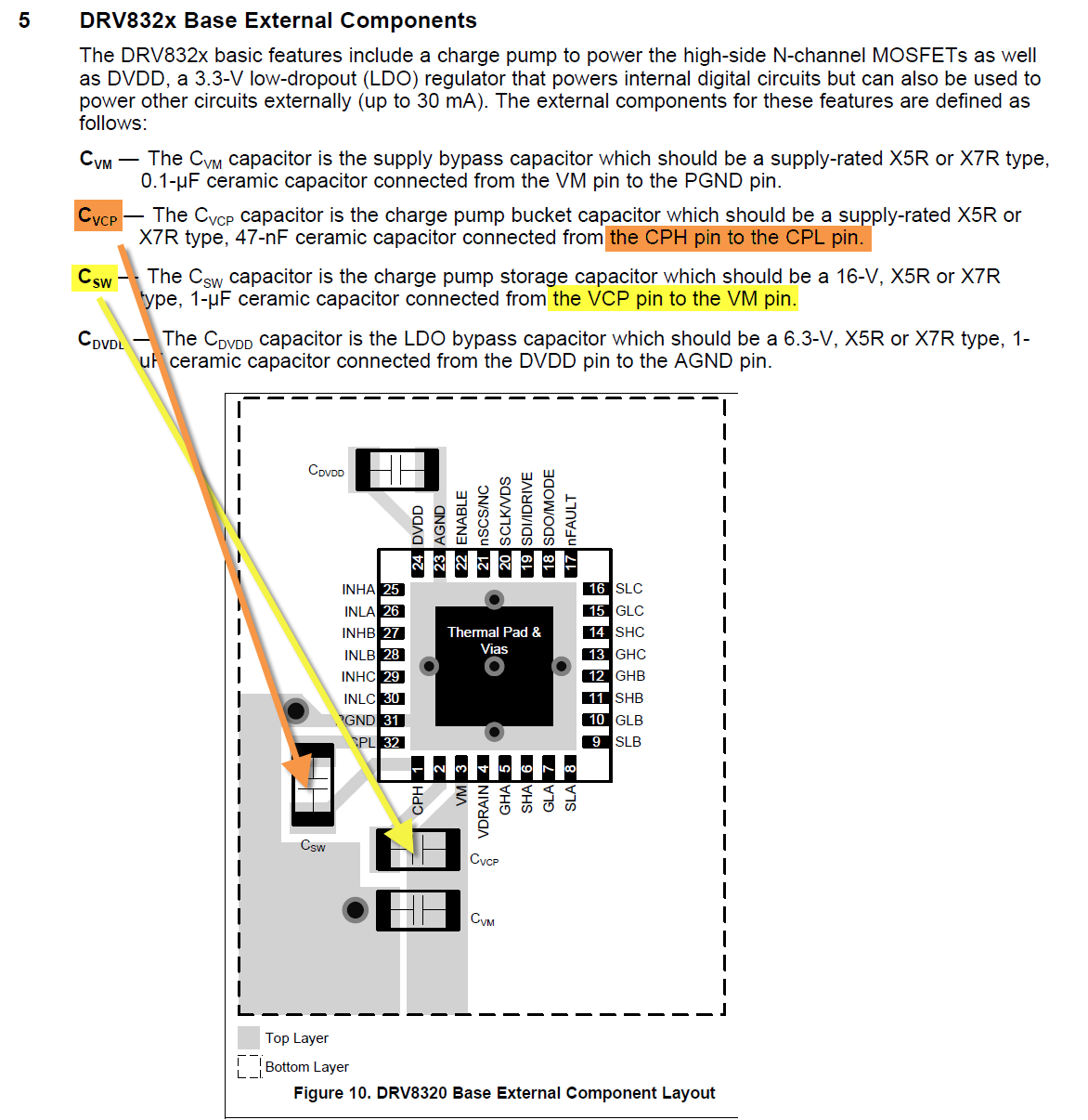

There appears to be a documentation error in all of the "External Component Layout" figures shown in Section 5 of the document.

0 Adam Sidelsky over 3 years ago

Tom,

My apologies, the naming of these two got flipped, I will get this corrected.

The orange line in the text above should be CSW and the yellow line should be CVCP.

Thanks and Regards,

-Adam
