TPS7B7701-Q1: About unused pins

Hide

Guru 21045 points

Part Number: TPS7B7701-Q1

Hi Team,

We understand that if we don’t use /ERR(9pin) and /SENSE_EN(8pin), those pins are Open (no connected).

Is my understanding correct?

Regards,

Kanemaru

over 5 years ago

0 Jason Song over 5 years ago

TI__Mastermind 23361 points

Hi Kanemaru,

/ERR is an output pin and it can be OPEN. For /Sense_EN, this is an input pin which is used to control the status of SENSE1 and SENSE2, floating an input pin is not recommended, I would suggest you either connect this pin to a digital low or high.

Regards,
Jason Song

0 Hide over 5 years ago in reply to Jason Song

Guru 21045 points

Hi Jason-san

Thank you for your prompt reply.

I understand. Thank you very much.

Regards,

Kanemaru

0 Hide over 5 years ago in reply to Hide

Guru 21045 points

Hi Jason-san,

We have additional question.

We don’t use current sense function so we have to set “/SENSE_EN=High”.

Therefore, we start up " /SENSE_EN " and "EN" at same time.

Could you please let us know if you have any concern?

Regards,

Kanemaru

0 Jason Song over 5 years ago in reply to Hide

TI__Mastermind 23361 points

Hi Kanemaru-san,

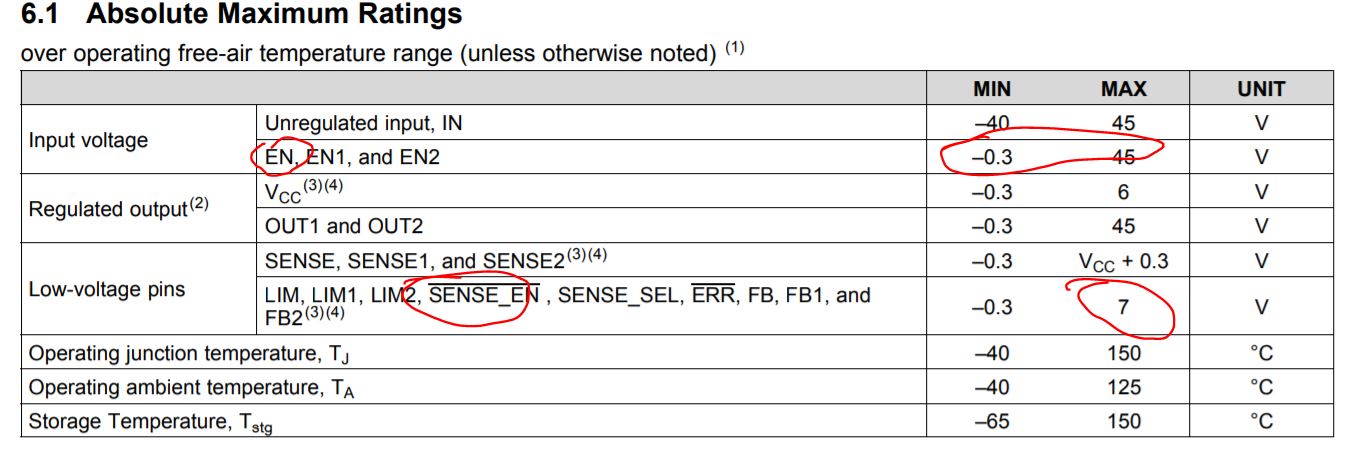

There are no sequencing requirement on EN and SENSE_EN. Just be careful to share the same power rail between EN and SENSE_EN as their absolute maximum voltage ratings are different.

Regards,
Jason Song

0 Hide over 5 years ago in reply to Jason Song

Guru 21045 points

Hi Jason-san,

Thank you for your prompt reply.

I understand. Thank you very much.

Regards,

Kanemaru
