TINA-TI: Insert -Graphics, occurs a blank in picture

Chong Yu

Part Number: TINA-TI

Hi,

My customer need assistance.

Description:
I used TINA-TI simulated as below.

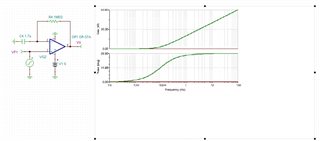

For bode: file - export - JPEG. For TINA: Insert -Graphics - select saved picture just now,
Question: why occurs a blank area in inserted picture but not in exported .jpeg. Is there any relevant configuration?

over 4 years ago

0 LeonardEllis over 4 years ago

TI__Guru 71526 points

Hello Chong,

Thank you for your inquiry about TINA. Since TINA is a DesignSoft/TINA program, questions are handled by using the DesignSoft support page: http://www.tina.com/technical-support/ .

The DesignSoft/TINA team is very helpful and this is the most direct way for TINA support. Please advise by Reply when the issue has been resolved.

Regards,

~Leonard

0 kai klaas69 over 4 years ago

Guru 140200 points

Hi Chong,

is the "Zoom" set to 100%?

Kai

+1 Daimin Tan over 4 years ago

Prodigy 30 points

Solved by below operation:

Open Settings and select System.Display Change the scale to 100%

ps: Setting menu of Windows
