OPA860: The OPA860 issue

Zhang Liang

Part Number: OPA860

Tool/software:

Hi,

We use the OPA860 in our laser radar project and My main issue is the peak holding circuit we are currently using.

Occasionally, customers have reported problems with OPA860. Attached are specific test waveforms for good and defective products, and I would like to know the cause of the defective products.

OPA860.xls

3 months ago

0 Anant Sinha 3 months ago

TI__Intellectual 2560 points

Hi Zhang,

I am looking into this, I will get back to you on this by tomorrow.

Regards

Anant

0 Zhang Liang 3 months ago in reply to Anant Sinha

Genius 4155 points

Hi Anant,

Please kindly review the issue and provide your comment, thanks.

0 Anant Sinha 3 months ago in reply to Zhang Liang

TI__Intellectual 2560 points

Hi Zhang,

Can you please share the waveform at pin 3 (base) of the device also.

And what percentage of devices you found faulty/defective when you tested?

Regards

Anant

0 Zhang Liang 3 months ago in reply to Anant Sinha

Genius 4155 points

Hi,

Please refer to our testing report for this issue:

8360.OPA860.xls

0 Anant Sinha 3 months ago in reply to Zhang Liang

TI__Intellectual 2560 points

Hi Zhang,

This test report is i believe same as the one you shared before.

It will be much easier to debug if you can share the wafeform of the pin 3 (base) of the device aswell.

Regards

Anant

0 Zhang Liang 3 months ago in reply to Anant Sinha

Genius 4155 points

Hi Anant.

Plesae refer to the file that we have updated the PIN#3 waveform in the file, the green line is the waveform, thanks.

0 Anant Sinha 3 months ago in reply to Zhang Liang

TI__Intellectual 2560 points

Hi Zhang,

The updated file is same as the previous one and it doesnot have the PIN3 waveform.

Can you please check and reshare

Regards

Anant

0 Zhang Liang 3 months ago in reply to Anant Sinha

Genius 4155 points

Hi Anant,

Plesae refer to below waveform:

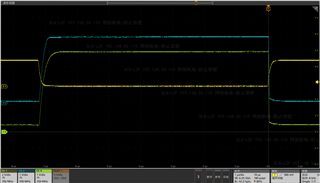

This is the Previous ones:

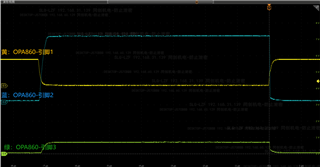

This is the updated ones:

The green line is the PIN#3

0 Anant Sinha 3 months ago in reply to Zhang Liang

TI__Intellectual 2560 points

HI Zang,

I am looking at this, I will get back to you.

Regards

Anant

0 Zhang Liang 3 months ago in reply to Anant Sinha

Genius 4155 points

Hi Anant,

Please help to check the waveform and is there any suggestion?

0 Anant Sinha 2 months ago in reply to Zhang Liang

TI__Intellectual 2560 points

Hi Zhang,

We are still look at this, will get bacl by tomorrow.

0 Zhang Liang 2 months ago in reply to Anant Sinha

Genius 4155 points

HI Anant,

Please help kindly review this case, thanks

0 Anant Sinha 2 months ago in reply to Zhang Liang

TI__Intellectual 2560 points

Hi Zhang,

It seems line the devicing is not sinking in the current, ss it possible to ship the damaged unit to us so that we can do some more test on it.

But before that can you check and confirm

1. Quiescent current of the damaged part and good part, are they same or different?

2. On the board where you see the problem, can you check and confirm whether diode D350 is functioning properly or not?

Regards

Anant

0 Zhang Liang 2 months ago in reply to Anant Sinha

Genius 4155 points

Hi Anant,

If we need to

Anant Sinha said:
It seems line the devicing is not singing in the current, ss it possible to ship the damaged unit to us so that we can do some more test on it.

submit the FAR in TI website or we ship the failure device to you directly?

Anant Sinha said:
1. Quiescent current of the damaged part and good part, are they same or different?

Yes, we have testing the A-B-A and the issue is solved when we change the device;

Anant Sinha said:
2. On the board where you see the problem, can you check and confirm whether diode D350 is functioning properly or not?

Yes, the D350 is functioning properly.

0 Anant Sinha 2 months ago in reply to Zhang Liang

TI__Intellectual 2560 points

Hi Zhang,

I will start a email chain for this FA, will share all the details there.

Regards

Anant
