Tool/software:
I have bought two op amps (OPA393 and TLV9151) for different applications, but I wanted to use them to convert differential output (AMC1200 Output) to single-ended output for ADC sampling.
What circuit can I design with these 2 op-amps, as I have no other op-amp for testing?
Hi Rohan,
What circuit can I design with these 2 op-amps, as I have no other op-amp for testing?

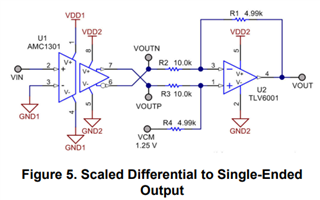

Here is application notes and a video about how to convert differential signal to single-ended output, see the image below.
https://www.ti.com/lit/ab/sbaa229b/sbaa229b.pdf?ts=1749454341221
https://www.tij.co.jp/jp/lit/an/slyt119/slyt119.pdf
https://www.ti.com/video/5973282049001
If you have other questions, please let me know.
Best,
Raymond
Hi Rohan,
Should I use the op-amp I have available in the same configuration?
Yes, this following portion of DA to SE conversion and method are identical.
Best,
Raymond
