TIPD108: OPA2365

Thanks RON, I will build this circuit and test it.

One quick question: Why have you included R5 and R6 as part of feedback, I quite didn't understand it.

Sumeet,

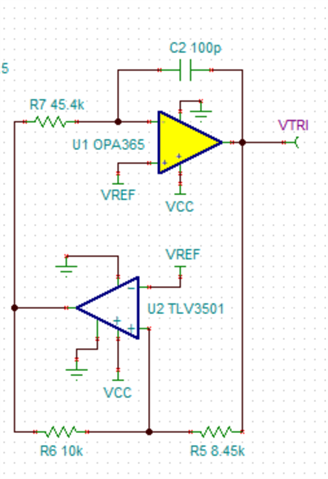

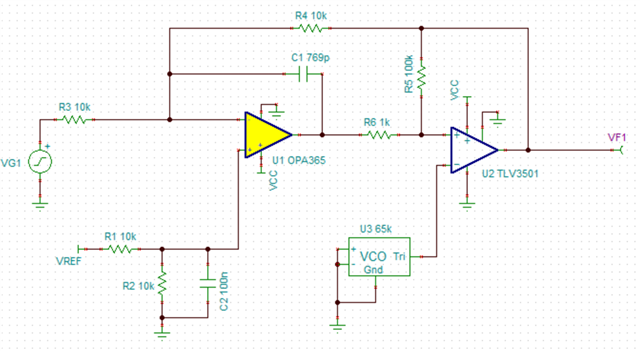

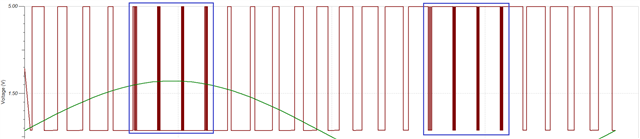

R5 and R6 add hysteresis to prevent output chatter. See blue rectangles, where simulation (without R5,R6) shows chatter, glitches, extra pulses.

Hi Ron,

I built this circuit on a prototyping board, I set the frequency to 80 kHz, but my actual output frequency is 70 kHz, could you please explain to me what could be causing this discrepancy. Secondly I have this circuits output connected to SN74LVC2G04 inverter, but I dont get any inverted output at the inverter's output pin. You advice and thoughts are greatly appreciated.

Sumeet,

Sumeet Patil said:

but my actual output frequency is 70 kHz

The prototyping board has more capacitance.

Sumeet Patil said:

but I dont get any inverted output at the inverter's output pin.

Make sure power and ground are connected to inverter.
