TPA3116D2EVM: TPA3116D2EVM

KULDEEP PANDEY

Part Number: TPA3116D2EVM
Other Parts Discussed in Thread: TPA3116D2

Tool/software:

I want to know that TPA3116D2 evm how much output can produce with 4ohm load and 24v supply with 1Khz Sine Wave and also want to know what is maximum Vrms.

I have a TPA3118 evm board which is in PBTL mode and when i test this with 1Khz sine wave using 24v supply and 4ohm load, the maximum Vrms = 10v (it once show14v and then stable to ~10v).

2 months ago

0 Ore Ogundana 2 months ago

TI__Genius 10305 points

Hey Kuldeep,

The output signal usually meets a couple voltage levels just below the power rail.

Regards,

Ore.

0 KULDEEP PANDEY 2 months ago in reply to Ore Ogundana

Prodigy 30 points

Could you please guide me how can i get 100w output in mono mode using ic TPA3116D2

0 KULDEEP PANDEY 2 months ago in reply to KULDEEP PANDEY

Prodigy 30 points

Does the Laptop signal is sufficient or i have to use preamp.

0 Ore Ogundana 2 months ago in reply to KULDEEP PANDEY

TI__Genius 10305 points

Hey Kuldeep,

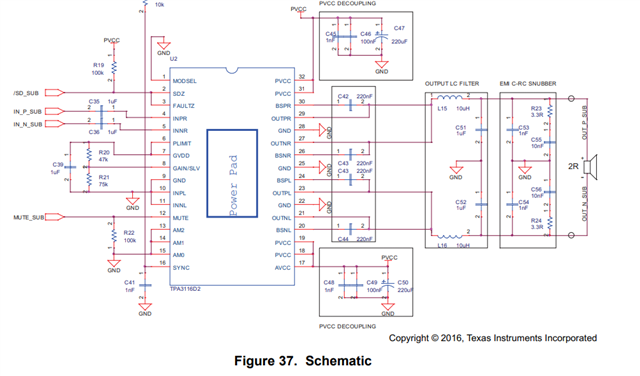

You could start from implementing this mono configuration provided in the DS:

Regards,

Ore.

0 KULDEEP PANDEY 2 months ago in reply to Ore Ogundana

Prodigy 30 points

Thanks for your guidence,

But could you pls tell me that what is the load impedence as in schematic it shows 2ohm.

0 KULDEEP PANDEY 2 months ago in reply to Ore Ogundana

Prodigy 30 points

I am using the same circuit with 12v 5amp supply with 4ohm load speaker but if i give ip-phone speaker signal to amplifier input signal, voice clipped and distorted; how can i fix this?

0 Ore Ogundana 2 months ago in reply to KULDEEP PANDEY

TI__Genius 10305 points

Hey Kuldeep,

The load could be any value of your choice. Typical values are 4ohm or 8ohm. To avoid clipping, I suggest reducing the input signal or increasing the voltage on pvcc. Ultimately, create headroom or make choices for your output signal to not clip.

Regards,

Ore
