TLV3802EVM: What are the dimensions of the TLV3802EVM board?

Francisco Belo

Part Number: TLV3802EVM

Tool/software:

What are the dimensions of the TLV3802EVM board?

0 Francisco Belo 3 days ago

What are the dimensions of the TLV3802EVM board?

0 Ron Michallick 3 days ago in reply to Francisco Belo

Hello Francisco,

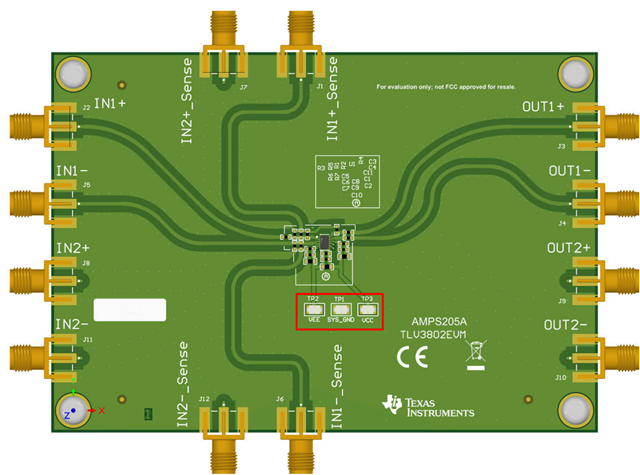

The SMA connector width is 0.375". In my image, this is 136 pixels(black lines).

Board X is 1798 pixel; so 1798/136 * 0.375" = 4.96" approximate

Board Y is 1798 pixel; so 1245/136 * 0.375" = 3.43" approximate

Not counting SMA overhang

0 Paul Grohe 3 days ago in reply to Francisco Belo

Hi Francisco,

The board is 4.75" x 3.250" (pretty good guesstimation, Ron!)

#4-40 Mounting holes/standoffs are 0.2" from the edges.
