INA819: Output exception

anson zhou

Part Number: INA819

Hi Sir :

The input waveforms and peak values of the normal and abnormal modules are the same, but the peak value of the output waveform of the abnormal module is approximately three times that of the normal module, and the amplification factor is greater than the normal value, resulting in abnormal flow in the calibration mode of the module ;

Normal :

Abnorml :

8 months ago

0 Taylor Allan 8 months ago

TI__Intellectual 1880 points

Hi Anson,

I'm glad to help. Could you provide a schematic or describe your test setup showing how the INA819 units are being used?

Best Regards,

Taylor Allan

0 anson zhou 8 months ago in reply to Taylor Allan

Intellectual 415 points

Hi Allan :

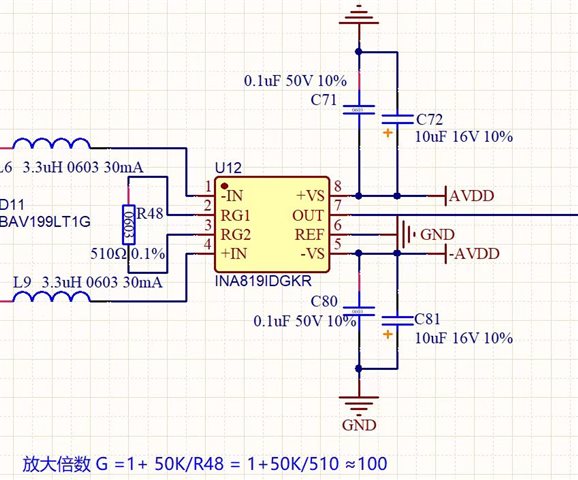

SCH ,FYI !

0 Taylor Allan 8 months ago in reply to anson zhou

TI__Intellectual 1880 points

Hi Anson,

Thanks for the schematic. Could you let me know the following:

The supply voltages AVDD and -AVDD
Can you clarify the voltages/waveforms seen by the input terminals of the device?
Is there any difference in the setup/schematic between the normal and abnormal module?

If the modules are identical, have you performed an A-B-A swap to test if the issue persists when swapping out a device?

Best Regards,

Taylor Allan

0 anson zhou 8 months ago in reply to Taylor Allan

Intellectual 415 points

Hi Allan :

1.Supply votages is 3.6V ;

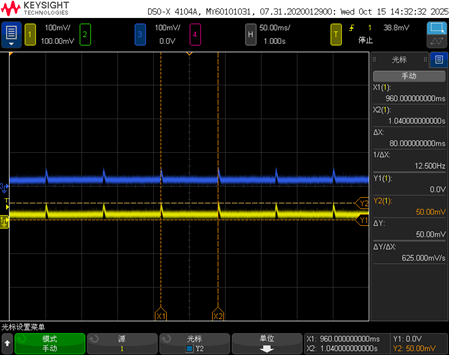

2.waveforms :

3. YSE ,We have conducted ABA cross validation experiments, and the adverse phenomena follow the chip

0 Taylor Allan 8 months ago in reply to anson zhou

TI__Intellectual 1880 points

Hi Anson,

If an ABA swap has shown that the device is the issue, then I believe there might be some unintended short with the gain pins or something else physical with the device, as the gain error spec of the INA819 has a max value of ±0.15%, which would not explain that significant of a difference in gain between the modules.

Could you perform a visual inspection of the device and its pins? Could there have been any ESD or EOS event that damaged that device?

Best Regards,

Taylor Allan
