INA826 linearization output is not expected

Darren Liu

Other Parts Discussed in Thread: INA826

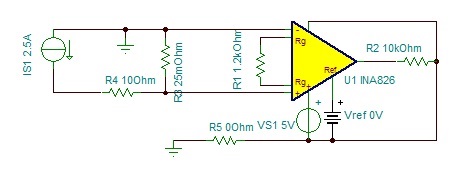

INA826 inputs +62.5mV,but outputs only +1.9V. It should be 64.5mV*(1+49.4/1.2)=2.719V. Can anybody tell me why? What problems does my circuit happen?

over 10 years ago

0 Darren Liu over 10 years ago

Prodigy 30 points

I sloved this problem a moment ago.

0 Pete%20Semig over 10 years ago in reply to Darren Liu

TI__Mastermind 25825 points

Hello DaNeng,

Can you please inform us of the solution? Perhaps it will help someone else who comes across the same problem.

0 Darren Liu over 10 years ago in reply to Pete%20Semig

Prodigy 30 points

Hi Pete Semig,

I just use the dual supply for the INA826 like -5V and +5V. Maybe the single supply for the INA826 causes lower INPUT COMMON-MODE VOLTAGE and OUTPUT VOLTAGE.

sincerely,

DaNeng

0 Pete%20Semig over 10 years ago in reply to Darren Liu

TI__Mastermind 25825 points

Hello DaNeng,

Thanks for following up!
