OPA2889---EVM BOARD

shrikant dudhambe

Other Parts Discussed in Thread: OPA2889, DEM-OPA-MSOP-2B, OPA2836

Hello Ti Community,

I want to use OPA2889 amplifier to make a band pass filter. For the same I looking for ( PCB ) EVM . I have gone through document : slou055_UNIV. but for 10 pin IC the information is not sufficient .

Kindly go through following information and suggest me which EVM should I use for OPA2889IDGST .

You can figure out the mismatch of pin numbers (PIN : 1,2,3,10,9) for inverting and non inverting mode ,and output

but the pin configuration is not matching to build above application.

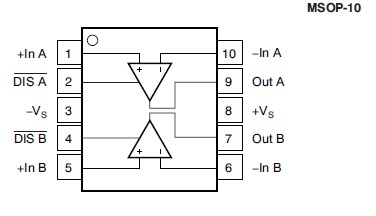

OPA2889 PIN assignment.

Thank YOU.

over 9 years ago

0 RandyP over 9 years ago

TI__Guru* 84110 points

Shrikant,

This is the C67x DSP forum. We will not be much help for an analog amplifier. You can look for the appropriate forum from the top of http://e2e.ti.com by typing the part number in the Part number/keyword box near the upper right corner. Sorry for the confusion and complexity. We have so many parts that none of us can know about all of them, but someone knows about the part you want and you can find them elsewhere on this E2E forum.

Regards,
RandyP

0 Senthilkumar Srinivasan over 9 years ago

TI__Mastermind 43660 points

Moving this thread to Amplifier forum.

Regards,
Senthil

0 Samir Cherian over 9 years ago

TI__Genius 12631 points

Shrikant,

You are correct, the pinout for the SLOU055 board is meant for a pin-out similar to the OPA2836. The evaluation module for the OPA2889 requires the use of the DEM-OPA-MSOP-2B EVM. If you can work with 5V supplies then the OPA2836 can be used with the SLOU055 Universal EVM.
