TLE2022-Q1: CHANNEL SEPARATION

Koji Hayashi
Intellectual 955 points
Part Number: TLE2022-Q1
Other Parts Discussed in Thread: TLE2022

Hi All,

Please tell me measurement value of channel separation.

Please also tell me the frequency at that time.

Best Regards
Koji Hayashi

  • 0
    TI__Guru* 93105 points

    Hayashi-san,

    It appears that the TLE2022-Q1 channel separation wasn't measured because I can't find any data and the datasheet makes no mention of the parameter. We are going to obtain some devices and measure it, but will need to assemble the test set up before the measurement can be made.

    I am going to be away for a few days so please allow us a week to get this task completed. I'll provide the information once it becomes available.

    Regards, Thomas

    Precision Amplifiers Applications Engineering

  • 0 in reply to Thomas Kuehl
    Intellectual 955 points
    Hi, Thomas-san

    Thank you for your quick response.

    I look forward to hearing from you.

    Best Regards
    Koji Hayashi
  • 0 in reply to Thomas Kuehl
    TI__Guru* 93105 points

    Hayashi-san,

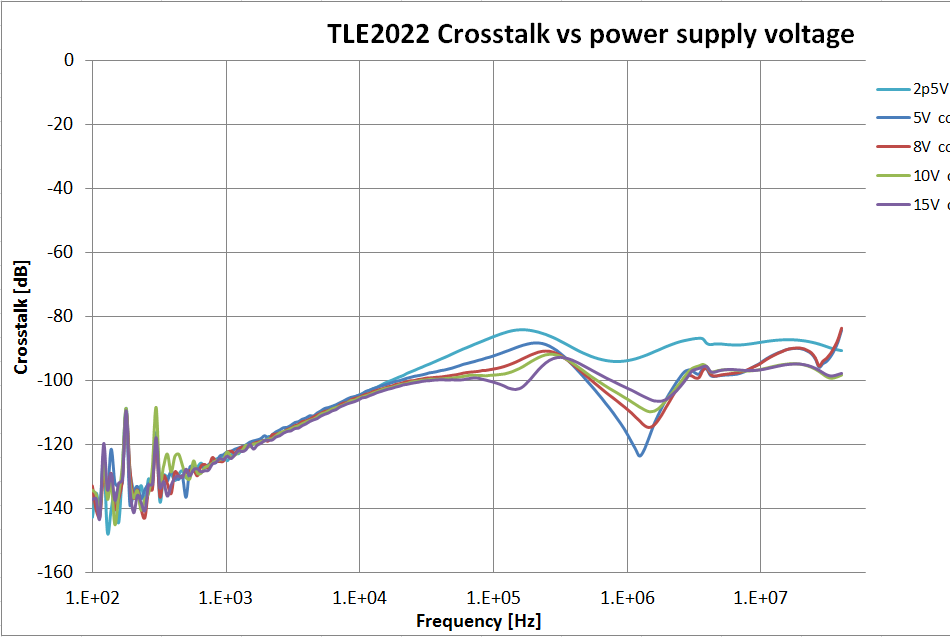

    Please see the TLE2022 channel separation graph shown below. The performance will be very similar for the TLE2022-Q1. Note that the supplies are dual such as +/-15 V, etc.

    Regards, Thomas

    Precision Amplifiers Applications Engineering
