RCV420: Implementation on RCV420

Hi Ryan,

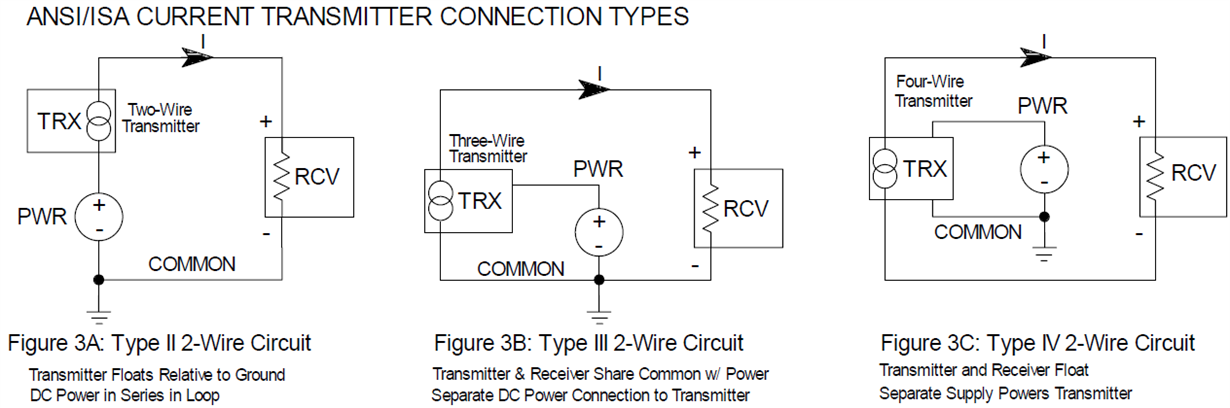

Attached below is a pdf file with a presentation covering 4-20mA Current Transmitter basics.  The presentation provides the contrast between the 2-wire and 3-wire transmitters.

In addition, below there is a blog series that discusses the 4-wire configuration:

I. 4-Wire 4-20mA – 4-Wire Sensor Transmitter Overview
https://e2e.ti.com/blogs_/b/precisionhub/archive/2015/07/17/4-wire-current-loop-sensor-transmitters

II. 4-Wire 4-20mA – Output Isolated Transmitters
https://e2e.ti.com/blogs_/b/precisionhub/archive/2015/08/28/designing-output-isolated-4-wire-sensor-transmitters

III. 4-Wire 4-20mA – Power Isolated Transmitters

https://e2e.ti.com/blogs_/b/precisionhub/archive/2015/09/18/how-to-design-power-isolated-four-wire-sensor-transmitters

IV. 4-Wire 4-20mA – Fully Isolated Transmitters
https://e2e.ti.com/blogs_/b/precisionhub/archive/2015/10/21/how-to-design-fully-isolated-4-wire-sensor-transmitters

Please review the attached, and let me know if you have questions.

Best Regards,

Luis Chioye

PDF file with 2-wire and 3-wire 4-20mA Current Transmitter Basics:

5861.4-20mA_Basics.pdf

Hello Luis

Thanks for the detailed explanation. It really solve my questions.

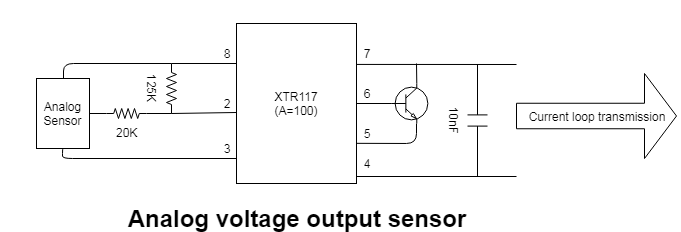

There're 2 photos and is it suitable for voltage output & circuit output sensor?

Thank you for the big help

Ryan
