INA181: About INA 181 A SOT-23 (DVB) package footprint

Noriaki Fukazawa

Expert 1620 points

Part Number: INA181

Dear Expert.

Thank you for your special support everyday.

My customer are consideration this product.

Do you have a footprint of the SOT - 23 (DVB) package of INA 181A?

Since it is not described in the data sheet, I inquired.

Best,Regars.

Fukazawa

over 6 years ago

0 Patrick Simmons over 6 years ago

TI__Mastermind 26335 points

Hello Noriaki,

Thanks for considering to use Texas Instruments. Are you sure you want a DVB package and not a DBV package? According to our package reference library, DVB is a 12 pin SOP package while DBV is a 6-pin sot-23. If in fact you want DBV, then we do have that. If you are in fact wanting a DVB package, unfortunately none of our devices are available in that.

0 Noriaki Fukazawa over 6 years ago in reply to Patrick Simmons

Expert 1620 points

Dear Simons-san

Thank you for your reply.
'' DBV '' package is correct.
However, footprints are not posted on the materials.

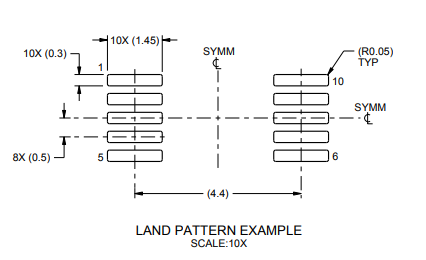

Do you have the following footprint?

Best,Regars.
Fukazawa

0 Patrick Simmons over 6 years ago in reply to Noriaki Fukazawa

TI__Mastermind 26335 points

Hello Fukazawa,

Here is the footprint:

/cfs-file/__key/communityserver-discussions-components-files/14/pptd107b.pdf
