THS4541: TINA TI simulations

Tomoaki Yoshida91

Genius 5255 points

Part Number: THS4541
Other Parts Discussed in Thread: TINA-TI

Hi team,

I will simulate THS4541 by TINA TI.

But I did't use TINA TI, I am not sure how to use it.

I want to be able to perform AC analysis, transient analysis, and noise analysis on a general circuit.

For example, a general circuit such as the circuit on the first page of the data sheet.

I tried to download THS4541 TINA-TI Reference Design from the homepage, but I couldn't download it.

By the way, I can download THS4541 TINA-TI spice model.

I'm happy with the reference design that can be used as it is, but can you give me a simulation circuit that can be used as a reference?

Best regards,

Tomoaki Yoshida

over 5 years ago

0 Sima Jalaleddine over 5 years ago

TI__Mastermind 29465 points

Hello Tomoaki Yoshida.

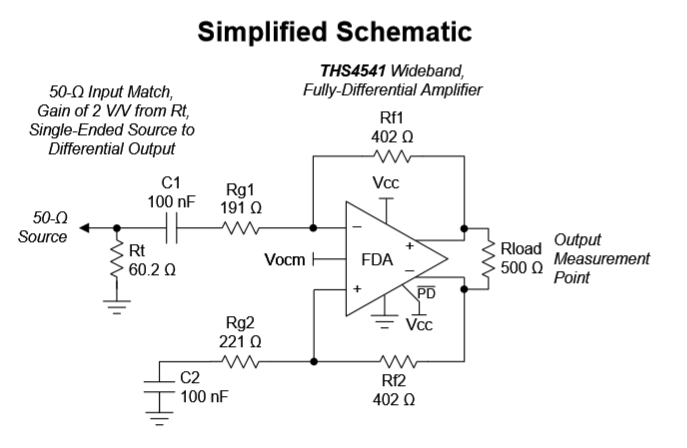

I have attached two files below: the THS4541 reference design available in the THS4541 Design and Development folder and a simulation circuit of the simplified schematic you have shown in your post (Figure 61 in the THS4541 datasheet). Let me know if you are unable to download these files. Since you were able to download the THS4541 Tina-TI spice model, you can insert this model into Tina-TI by selecting insert at the top right corner of the Tina-TI software and pressing macro. This will initiate a pop up window which you can select the THS4541.TSM file from the downloaded folder (make sure it is extracted first). From there you can add the necessary components to match the schematic in your post and be able to run a transient/ac/noise analysis.

sbom907b.tsc

Figure61THS4541.TSC

Thank you,

Sima

0 Sima Jalaleddine over 5 years ago

TI__Mastermind 29465 points

Hello Tomoaki Yoshida,

Were you successfully able to download the files?

Thank you,

Sima

0 Tomoaki Yoshida91 over 5 years ago in reply to Sima Jalaleddine

Genius 5255 points

Hi Sima-san,

I'm sorry for my late reply.

Yes, I was.

I can also run simulations.

Thank you.

Best regards,

Tomoaki Yoshida

0 Sima Jalaleddine over 5 years ago in reply to Tomoaki Yoshida91

TI__Mastermind 29465 points

Hello Yoshida-san,

I'm glad it is working! Feel free to open a new thread if you have further concerns or questions.

Thank you,

Sima
