TINA-TI: Conversion file from TINA to Pspice

Ryuuichi machida

Guru 12765 points

Part Number: TINA-TI

Hello,

I would like you to confirm how user perform conversion from TINA to Pspice.

Here is my understanding.

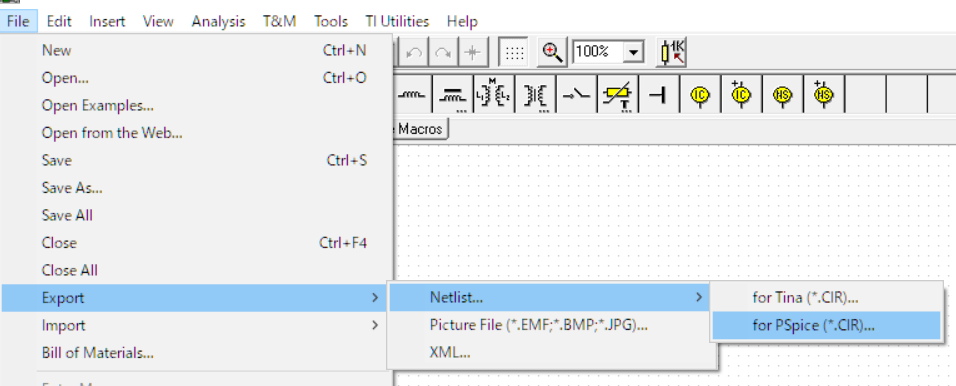

* Perform export for TINA-TI file(TSC file.) by following below.

However, it seem that this creates only library file. In case of Pspice, I think that symbol information is also needed (In case of ORCAD, "OLB" file.)

Is it possible to run Pspice only "lib(or CIR)" file ?

Best Regards,

over 5 years ago

0 LeonardEllis over 5 years ago

TI__Guru 71526 points

Hello Ryuuichi,

There is an FAQ that discusses this process: https://e2e.ti.com/support/tools/sim-hw-system-design/f/234/t/692613 .

Regards,

~Leonard

0 Ryuuichi machida over 5 years ago in reply to LeonardEllis

Guru 12765 points

Hello Leonard-san,

Thank you for sending tip.

However, it seems that this topic discuss about encrypt data.

What I want to confirm is below.
When user will use unencrypt model, is it enough to generate only lib(CIR) file for Pspice ?
(not need symbol file(OLB file).)

Best Regards,

0 LeonardEllis over 5 years ago in reply to Ryuuichi machida

TI__Guru 71526 points

Hello Ryuuichi-san,

What you suggested is correct; you do not need the OLB file, only the unencrypted lib or cir file is required.

Since TINA is a DesignSoft/TINA program, if you have additional questions concerning TINA, please use the the DesignSoft support page: http://www.tina.com/technical-support/ . The DesignSoft/TINA team has been very helpful and this is the most direct way for TINA support.

Regards,

~Leonard
