ISO224: Tina-TI .cir file export not working on LTspice

Adam Novak

Part Number: ISO224
Other Parts Discussed in Thread: TINA-TI

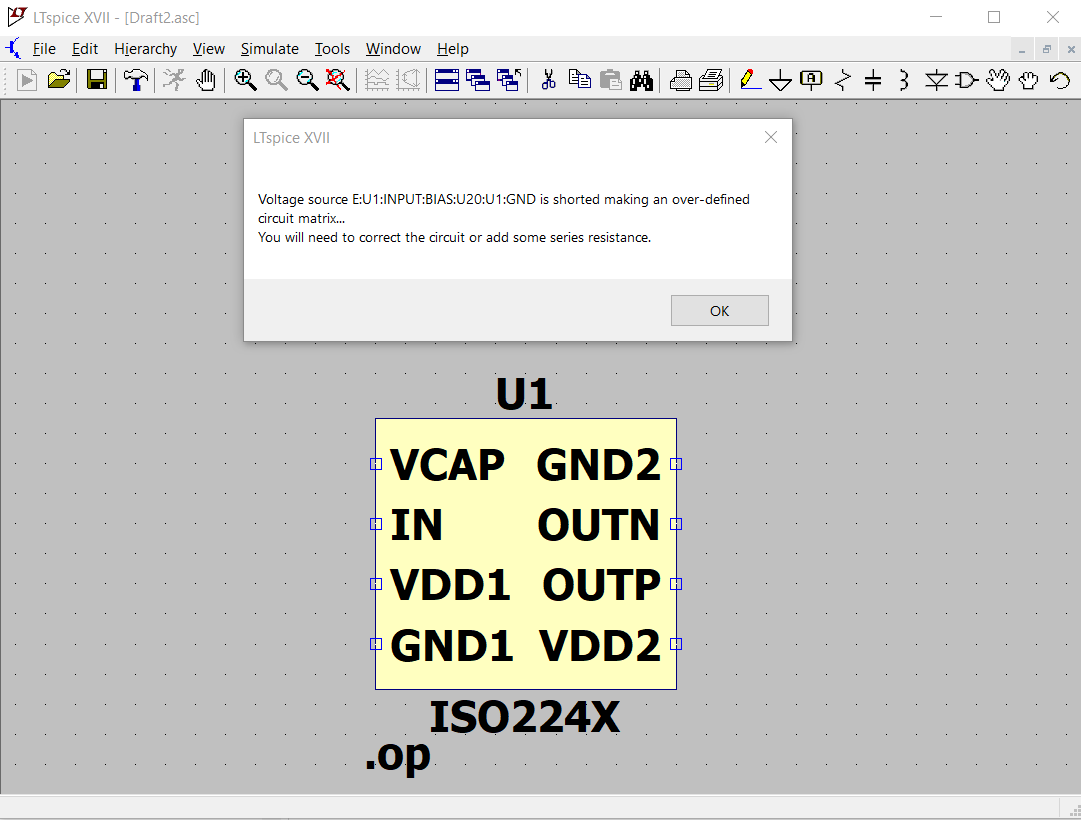

Hello. My objective is to be able to simulate the ISO224 in LTspice. I found the simulation model of the ISO224 for Tina-TI on the TI website. I attempted to use a .cir file exported from Tina-TI on LTspice, but upon simulating I receive an error. Both in a circuit and by itself I received the same error. The following is that error. Is there anyway to fix this?

over 5 years ago

0 Tom Hendrick over 5 years ago

TI__Guru**** 180931 points

Hi Adam,

Welcome top our e2e forum! Unfortunately I don't have a great answer for you here. The end user license agreement for the tool you are trying to use restricts what we can do from our side. Are you able to pull the .CIR file from the ISO224 into PSpice?

0 Adam Novak over 5 years ago in reply to Tom Hendrick

Prodigy 20 points

Hello Tom,

Thank you for the warm welcome! Unfortunately, as this point in time I do not have access to PSpice.

-Adam

0 Tom Hendrick over 5 years ago in reply to Adam Novak

TI__Guru**** 180931 points

OK, sorry to hear that. If there is anything specific to the ISO224 that you are looking for, let us know and perhaps we can provide the detail.
