INA333: E-Pad on part lacks any guidance on usage.

Reed Arnold75

Part Number: INA333

The E-pad of this part has no specific labels on usage guidelines. It doesn't say 'N.C.' or that it needs to be to the most negative supply, is it totally floating and isolated? What would the best practice for this be?

Checking this "SLUA271" link, it's a generic design document, not useful for electrical rules.

over 5 years ago

0 Raymond Zhang1 over 5 years ago

TI__Guru* 77521 points

Hi Reed,

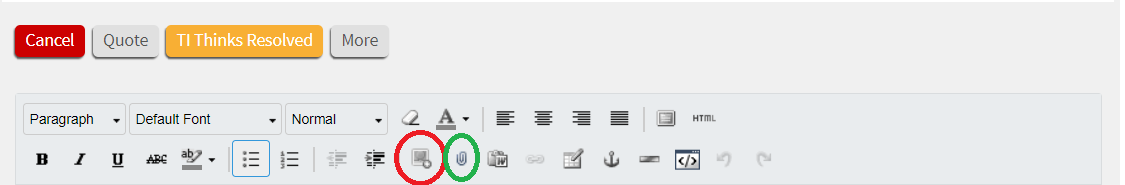

Please reload the images. Please use the icon circled in red to upload image files. Please use the icon circled in green to load regular files.

Best,

Raymond

0 Reed Arnold75 over 5 years ago in reply to Raymond Zhang1

Prodigy 70 points

Thanks, I've fixed the images, they are just snippets from the datasheet showing that I can't find information pertaining to this particular e-pad. There is nothing that says clearly to connect or not connect it. Ideally I'd like to stake it to the GND plane, but I don't know if I'm allowed to, because lack of documentation.

0 Raymond Zhang1 over 5 years ago in reply to Reed Arnold75

TI__Guru* 77521 points

Hi Reed,

Power pad or ground lug of INA333 should be connected to the most negative supply in a design.

In the single supply application, it should be connected to ground. In a dual supply application, the power pad should be tied to a negative rail.

If you have other questions, please let me know.

Best,

Raymond
