1. The page with the detailed instructions for using PLLatinum Sim goes to a notice that it does not exist. Can you send me a detailed users manual for this software? Under File you can choose interface with TAICSPro but it does not work unless there are some instructions you can send me.
2. Can you send me a link to download the actual Gerber files and drill files for the LMX2594EVM board. The manual has pictures but those are not accurate enough to use.
Hi Jeffrey,
We don't have a formal user's manual for PLL Sim.

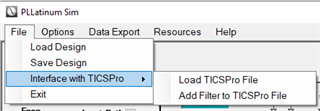

The interaction between PLL Sim and TICS Pro are limited to the following:
Load TICSPro File:
- you generate a .tcs file from TICSPro (File --> Save)
- in PLL Sim, you can load this file so that all the frequencies and MASH configuration will be identical to TICS Pro. In other words, you copy TICS Pro PLL configuration to PLL Sim.
Add Filter to TICSPro File
- This will add the loop filter value you have design from PLL Sim into the .tcs file. As a result, next time when you do Load TICSPro File, in addition to frequency and MASH configuration, the loop filter value will be loaded as well.
