LMK03318: Power consumption calculation

JH Shin
Guru 11160 points
Part Number: LMK03318

Hello,

My customer wants to know the LMK03318 power consumption for user's use case.

Please provide any tools or data that can calculate power consumption for user's use case.

Thank you.

JH

  • 0
    TI__Mastermind 29362 points

    Hi JH,
    There is no tool but total current consumption can be read on on TICSpro if they're using the software.


    The datasheet on page 9 also mentions typical current consumptions by blocks, customer can use this and add up all consumptions based on their use case to calculate power.

    Regards,

    Vicente

  • 0 in reply to vicente flores prado
    Guru 11160 points

    Hi Vicente,

    Thanks for your help.

    It seems that LMK03318EVM is required to read the total current consumption from the TICS Pro S/W. However, the customer does not have the EVM.

    Could you please provide the total current consumption for the customer's register settings below?

    Fullscreen HexRegisterValues-LMK03318.txt Download
    R0	0x0010
R1	0x010B
R2	0x0233
R3	0x0302
R4	0x0401
R5	0x0500
R6	0x0600
R7	0x0700
R8	0x0802
R9	0x0900
R10	0x0AA0
R11	0x0B00
R12	0x0CDD
R13	0x0D00
R14	0x0E3D
R15	0x0F20
R16	0x1000
R17	0x1103
R18	0x1200
R19	0x1300
R20	0x14FF
R21	0x15FF
R22	0x16FF
R23	0x1703
R24	0x1800
R25	0x19A0
R26	0x1A00
R27	0x1B88
R28	0x1C28
R29	0x1D0F
R30	0x1E40
R31	0x1F28
R32	0x2028
R33	0x210F
R34	0x2228
R35	0x2328
R36	0x240F
R37	0x2514
R38	0x260F
R39	0x2714
R40	0x280F
R41	0x2914
R42	0x2A0F
R43	0x2B14
R44	0x2C0F
R45	0x2D08
R46	0x2E01
R47	0x2F00
R49	0x3108
R50	0x3253
R51	0x3303
R52	0x3400
R53	0x3501
R54	0x3600
R55	0x3700
R56	0x3806
R57	0x3908
R58	0x3A00
R59	0x3B40
R60	0x3C00
R61	0x3D00
R62	0x3E00
R63	0x3F00
R64	0x4000
R65	0x4101
R66	0x420C
R67	0x4304
R68	0x4401
R69	0x4504
R70	0x4607
R71	0x4701
R72	0x4800
R73	0x4900
R74	0x4A00
R75	0x4B00
R76	0x4C00
R77	0x4D00
R78	0x4E00
R79	0x4F00
R80	0x5000
R81	0x5100
R82	0x5200
R83	0x5300
R84	0x5400
R85	0x5500
R86	0x5600
R87	0x5700
R88	0x5800
R89	0x59E3
R90	0x5A01
R91	0x5B32
R92	0x5C01
R93	0x5D59
R94	0x5E01
R95	0x5F86
R96	0x6001
R97	0x61BE
R98	0x6201
R99	0x63FE
R100	0x6402
R101	0x6547
R102	0x6602
R103	0x679E
R104	0x6800
R105	0x6900
R106	0x6A05
R107	0x6B0F
R108	0x6C0F
R109	0x6D0F
R110	0x6E0F
R115	0x7308
R116	0x7419
R117	0x7500
R118	0x7607
R119	0x770D
R120	0x7801
R121	0x790F
R122	0x7A0F
R123	0x7B0F
R124	0x7C0F
R129	0x8108
R130	0x8219
R131	0x8300
R132	0x8403
R133	0x8501
R134	0x8600
R135	0x87D7
R136	0x8802
R137	0x8910
R138	0x8A00
R139	0x8B01
R140	0x8C58
R141	0x8DE8
R142	0x8E7E
R143	0x8F07
R144	0x9000
R145	0x9100
R169	0xA940
R172	0xAC24
R173	0xAD00

    Thank you.

    JH

  • 0 in reply to JH Shin
    TI__Mastermind 29362 points

    Hi JH,

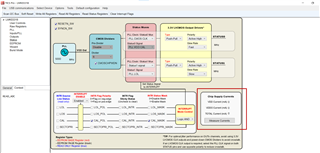

    When I load their config on my EVM I see around 63-64 mA of current being drawn or
    P=V * I = 3.3 V * 64 mA = 211.2 mW

    Regards,

    Vicente
