LMX2594: Clock Profile Creation RFOutA equal to 122.88 Mhz & 491.52 Mhz

Srinath N

Prodigy 10 points

Part Number: LMX2594

Hello,

Good afternoon. Greetings for the day.

I'm trying to create following clock profile (.tcs file) using the LMX2594:

1) 491.52 Mhz for both ADC and DAC.

2) 491.52 Mhz for DAC and 122.88 Mhz for ADC.

Could you please assist on how to start working on the same? As I am new to the TICS Pro Platform. Your support will be appreciated.

Regards

Srinath

over 2 years ago

0 Evan Su over 2 years ago

TI__Mastermind 18800 points

Hi Srinath,

I have paged our RF expert. To be clear, do you want two profiles, one with just a 491.52 MHz output and the other with 491.52 MHz + 122.88 MHz outputs?

Best,

Evan Su

0 Srinath N over 2 years ago in reply to Evan Su

Prodigy 10 points

Hello Evan,

Greetings.

That's correct. I tried creating profile but unfortunately I'm unable to get output frequency as shown below:

Can you please assist ? What could be the reason behind the same. I've adhered to all the criteria's while creating the clock profile using TICS Pro

0 Noel Fung over 2 years ago in reply to Srinath N

TI__Guru** 110080 points

Hi Srinath,

You can only get the same frequency outputs because the output divider is shared with bout outputs.

0 Srinath N over 2 years ago in reply to Noel Fung

Prodigy 10 points

Hello Noel,

Greetings.

Understood.

Based on your Clock profile configuration, when I tried to configure:

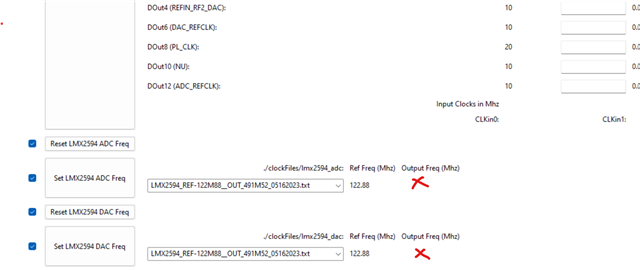

I'm still unable to obtain Output Frequency on the Board GUI. This was the issue that I was facing earlier as well. Could you please let me know what could be the possible reason behind the same ?

0 Noel Fung over 2 years ago in reply to Srinath N

TI__Guru** 110080 points

Hi Srinath,

I don't know what GUI you are using, make sure your GUI has programmed LMX2594 properly, you can read back the registers to confirm.

In you hardware, make sure there is a valid 122.88MHz clock for LMX2594.

0 Srinath N over 2 years ago in reply to Noel Fung

Prodigy 10 points

Hello Noel,

I'm using TICS Pro to create the Clock profile & using ZCU216 Board GUI to dump the same into LMX2594 ADC and DAC. Please let me know if you need more information. I'm unable to create clock profile for 491.51 MHz and 122.88 MHz.

Thank you so much for your response.

0 Noel Fung over 2 years ago in reply to Srinath N

TI__Guru** 110080 points

Hi Srinath,

ZCU216 is not a TI board developed in my team, I have zero knowledge how to use it.

As I have told you, you can do a register read back to confirm you have written the registers properly. Also you should make sure the input clock is 122.88MHz.

0 Srinath N over 2 years ago in reply to Noel Fung

Prodigy 10 points

Okay Noel. Thank you so much for your support.

Wishing you wonderful day ahead.
