DS110DF410_S-parameter model port clarification

Chitharanjan M1

Other Parts Discussed in Thread: DS110DF410

HI Team,

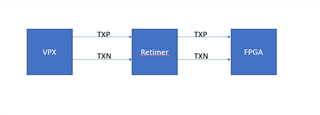

We have used DS110DF410 retimer in one of the design and currently, we are doing S-parameters simulation (frequency Domain) for the below circuitry.

And S-parameter file llp48_pkg.s4p which is shared by the TI team is having below port naming conventions. Could you please let me know how to map this s-parameter model pin to our circuit?.

Regards,

Chitharanjan M

over 2 years ago

0 Evan Mayhew over 2 years ago

TI__Mastermind 25048 points

Hi Chitharanjan,

From my understanding, the pin mapping is p1 <-> p2, and p3 <-> p4:

Please let me know if you do not have the project quick start guide so I may share privately.

Thank you,

Evan

0 Chitharanjan M1 over 2 years ago in reply to Evan Mayhew

Intellectual 360 points

Evan Mayhew said:
From my understanding, the pin mapping is p1 <-> p2, and p3 <-> p4:

Sorry didn't understand, You mean to say P1 and P3 will be connected to VPX and P2 and P4 to FPGA?

0 Evan Mayhew over 2 years ago in reply to Chitharanjan M1

TI__Mastermind 25048 points

Yes, that is my understanding:

Thank you,

Evan
