LMX2572LPEVM: I have a question about the value of register R112

ishii.takeshi

Part Number: LMX2572LPEVM

Hello.

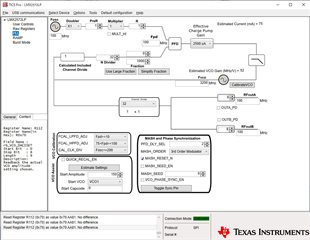

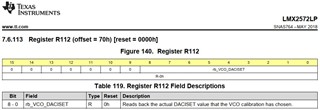

In the datasheet, the maximum value of R112 is 0x01FF.

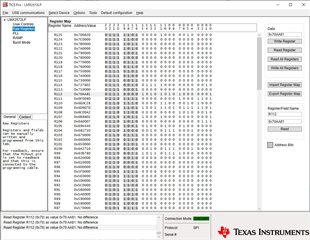

When read back, it is 0xAA81.

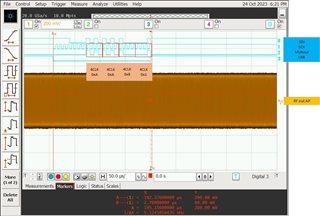

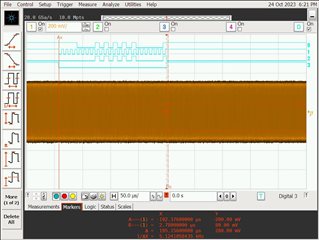

When I measure it with an oscilloscope, it looks like 0xAA81.
Is this behavior correct?

over 1 year ago

0 Noel Fung over 1 year ago

TI__Guru** 108130 points

Hi Takeshi-san,

R112 is a read only register, bit 9 - bit 15 represent some other read back register values, they are used for internal debug purpose. It is normal that you may read back some value other than 0.

0 ishii.takeshi over 1 year ago in reply to Noel Fung

Prodigy 80 points

Thanks for the quick response.

I understood very well.
