LMK00301: Phase Noise plots at 625MHz

David Tozour

Part Number: LMK00301

Tool/software:

The latest datasheet has 3 phase noise plots at 100MHz, Figure 7-21, 22, 23. I would like similar phase noise plots at 625MHz for LVDS and LVPECL.

0 Michael Srinivasan 9 months ago

Hi David,

I will take this into lab and capture the measurement tomorrow.

Thanks,

Michael

+1 Michael Srinivasan 9 months ago in reply to Michael Srinivasan

Hi David,

I have taken the measurements. First, I took the phase noise measurement of the CLK source (an SMA100 signal generator):

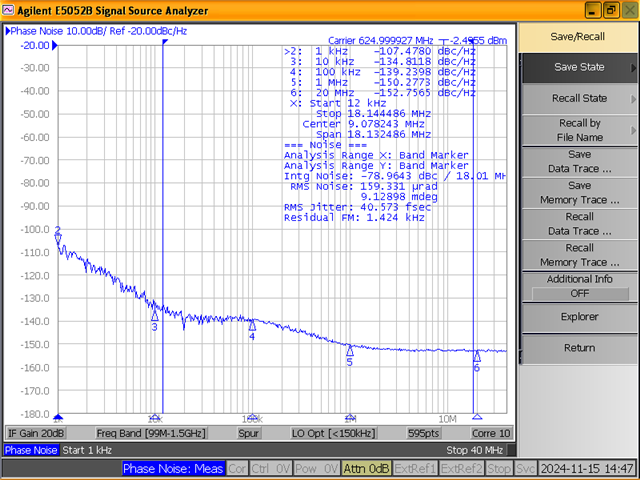

Next, I took the LVDS measurement:

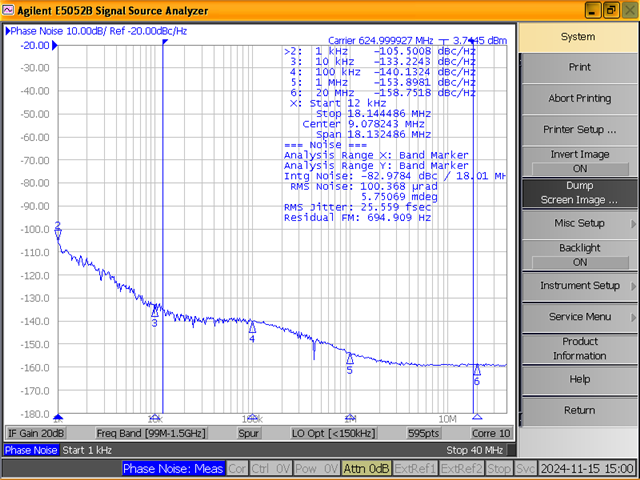

Finally, I took the LVPECL measurement:

Please let me know if you have any other questions.

Thanks,

Michael

0 David Tozour 9 months ago in reply to Michael Srinivasan

Michael,

Thank you very much for these measurements. This part meets my requirements.

David
