LMH1983: Registers that change for each video format when in Auto Format Detection Mode

R.Fukunaga

Part Number: LMH1983

Tool/software:

Hi all,

If you have a document that summarizes the register table data that changes with each video format in Auto Format Detection Mode, would it be possible?

Is it possible?

Does Figure2 show the registers changing with the Auto Format Detection Mode?

Best Regards,

Ryusuke

9 months ago

0 Kadeem Samuel 9 months ago

TI__Mastermind 22550 points

Hello,

The team is out for the holidays. Please expect a response by Jan 2 at the earliest.

Thanks,

Kadeem

0 R.Fukunaga 8 months ago in reply to Kadeem Samuel

Expert 2525 points

Hi Kadeem,

How is the progress?

Also, right after soft reset of address 0x05, writing to another register fails.

Is there any waiting time after soft reset?

There is no particular description in the data sheet.

Best Regards,

Ryusuke

+1 Noel Fung 8 months ago in reply to R.Fukunaga

TI__Guru** 108220 points

Hi Ryusuke-san,

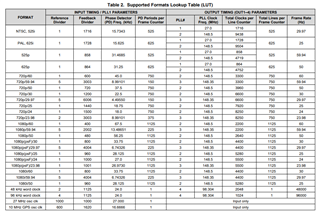

The format code is in below section.

I don't think there is a delay time requirement for a soft reset. To verify this, you may write POWERDOWN = 1 after a soft reset. If the current change, that means there is no programming issue after a soft reset.
