LMX1204: SYSREFREQ_P/N INPUT

asaf barom

Part Number: LMX1204

Tool/software:

Hello,

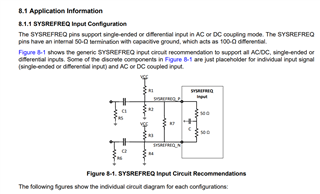

I am using the LMX1204 component on my new design and need to supply a signal in 1.2V LVDS common mode to the SYSREF_REQ pin. Can I rely on the internal 100-ohm termination provided internal by the component, or is an external termination required? If so, I would appreciate an example of how to implement this correctly.

Thank you very much for your help.
Asaf Barom.

6 months ago

0 Michael Srinivasan 6 months ago

TI__Expert 8380 points

Hi Asaf,

I will be able to provide a response tomorrow.

Thanks,

Michael

0 Michael Srinivasan 6 months ago in reply to Michael Srinivasan

TI__Expert 8380 points

Hi Asaf,

You should be able to rely on the internal 100-ohm termination of the SYSREFREQ inputs. Technically, the termination of each input is 50 ohms to the common mode voltage, but that is the same as a 100 ohm differential termination.

Thanks,

Michael
