LMKDB1102: Single-end clock input

Kei Kuwahara

Expert 7580 points

Part Number: LMKDB1102

Tool/software:

Hello team,

My customer would like to input AC-coupled single-end clock to LMKDB1102.

Question1

Is it okay to input AC-coupled single-end clock to this device?

If so, what would be the input interface configuration?
Customer would like to see diagram like below.

Question2

What would be the maximum peak to peak amplitude for AC-coupled Single-end clock input?

Best Regards,
Kei Kuwahara

3 months ago

+1 vicente flores prado 3 months ago

TI__Mastermind 28882 points

Hello Kei,
LMKDB1102 input stage is not designed for a single ended input.
It requires a differential HCSL, LP-HCSL or LVDS signal.

SE input is not possible.

Best regards,

Vicente

0 Kei Kuwahara 3 months ago in reply to vicente flores prado

TI__Expert 7580 points

Hello Vicente-san,

Thank you for checking.

However, I see some comments on the datasheet for single-end inputs like below. (Datasheet p.22)

Theoritically, may the input stage be single-ended? (Customer can accept some jitter performance degradation)

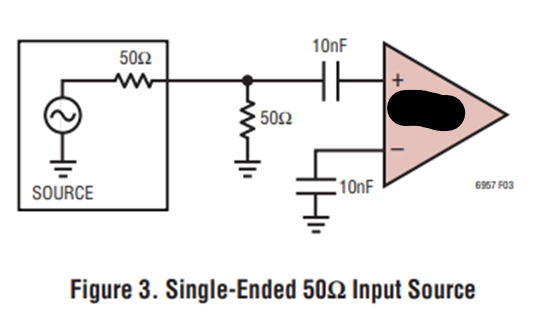

I am thinking single-ended input configuration to be something like this. (Might this work?)

Best Regards,
Kei Kuwahara

+1 vicente flores prado 3 months ago in reply to Kei Kuwahara

TI__Mastermind 28882 points

Hi Kei,
Unfortunately, no.
The input was designed in mind that it would only ever receive a differential input. I have confirmed with design as well.

Best regards,

Vicente

0 Kei Kuwahara 3 months ago in reply to vicente flores prado

TI__Expert 7580 points

Hi Vicente-san,

Understood, thank you for checking.

Best Regards,
Kei Kuwahara
