LMK3C0105: About 3D model request of LMK3C0105TV3RGTRQ1

Hi Kadeem Samuel,

Thanks for your quick response.

I am unable to see 3D models for either of these part numbers (LMK3C0105TV3RGTRQ1 / LMK3C0105TV1RGTRQ1) on the Ultra Librarian website:

I have also tried looking for the base part number (LMK3C0105RGTQ1), with no luck.

Is there somewhere else I should be looking?

Thanks!

Thanks Kadeem, where/how do I access that library?

Hi Cris Kobierowski,

Have you clicked the link you sent? As noted in the original post, Ultra Librarian does not have the model for this part:

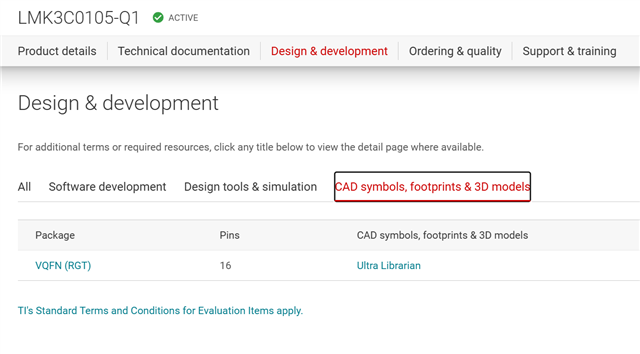

UL link from product page

It also does not have any models if you search for the part manually using any of these PNs: LMK3C0105-Q1, LMK3C0105TV3RGTRQ1, LMK3C0105TV1RGTRQ1

UL does not have an option to request the 3D model, only the symbol/footprint:

If someone from TI has this model, can they please just send me the file? It seems strange that it is so difficult to fulfill such a simple request, and we seem to be going around in circles somewhat.

Thanks!

Samm,

It appears that only the .STL and .STEP files are available currently. We have reached out to the CAD backend team on this, I expect that the model should be up properly within the next week or two.

Thanks,
Kadeem

Hi Kadeem Samuel,

The STEP model is what I am after, can you please send it to me?

Hi Kadeem Samuel,

Apologies for the tone, but given this should be a simple request, it is quite frustrating to have to repeatedly ask for the same thing.

While I appreciate the attempt you have made, you have again sent the wrong files. As has been covered multiple times in this thread, we are requesting the STEP file for the LMK3C0105TV3RGTRQ1 / LMK3C0105TV1RGTRQ1. You have sent LMK3C0105V33RERR, which is not the same package.

To be clear, it is the TI RGT0016K that we need:

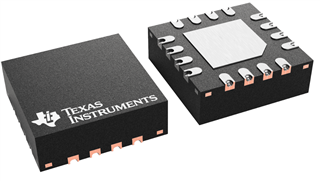

You have renders on the product page, so theoretically someone at TI has the model we are after:

Samm,

I have reached out again to the packaging team to get these files made accessible for UltraLibrarian. I do not have direct access to the STEP files - what I have done here is exported the library files to a .zip that I can share for LMK3C0105TV1RGTRQ1:

Components - 10.07.25 - 08.24.zip

I do not get the option to export the individual component as a .STEP - will this zip work?

Thanks,
Kadeem
