CDCE913:No Acknowledgment Response from CDCE Device over I2C

Hidefumi Ishizawa

Part Number: CDCE913

Tool/software:

I'm trying to control a CDCE device via I2C from the main MCU, but I'm not receiving an acknowledgment (ACK) for the slave address.
I've tested two devices sourced from different suppliers. One responds with an ACK, while the other does not.

The sources are as follows:
- Procured from Chip One Stop (Japan): ACK is returned
- Procured from the TI website (China): No ACK is returned

The devices appear to have different lot numbers.
Do you have any information regarding possible version differences or changes in the CDCE device?

2 months ago

0 Cris Kobierowski 2 months ago

TI__Expert 6065 points

Hello,

Can you share the top markings for each device with us?

Are you using a TI EVM or a custom board? If you're using a custom board please share the schematic with us as well.

Best,

Cris

0 Hidefumi Ishizawa 2 months ago in reply to Cris Kobierowski

Prodigy 30 points

Hi,
Thanks for your reply.

Here are the top markings of the devices:

Procured from Chip One Stop (Japan): ACK is returned.
Marking: 27K G4 ADX3

Procured from the TI website (China): No ACK is returned.
Marking: 21K G4 CE62

We are using a custom board.

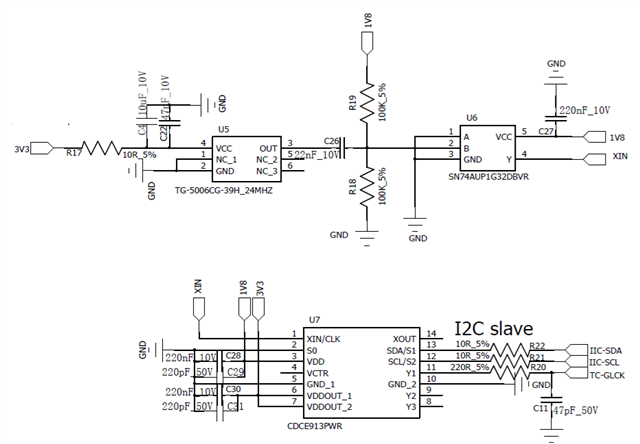

Please find the circuit diagram attached.

0 Hidefumi Ishizawa 2 months ago in reply to Hidefumi Ishizawa

Prodigy 30 points

One more question:

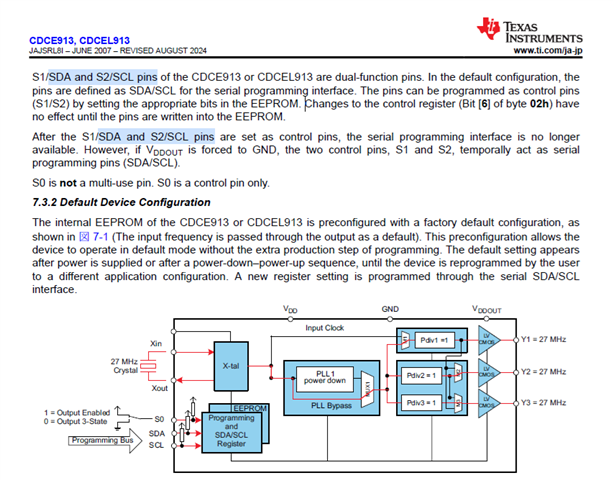

According to the datasheet, the default configuration for the S1 and S2 pins on the CDCE913 is SDA and SCL, respectively.
Is there any possibility that this default setting could have been changed prior to shipment?

0 Kadeem Samuel 2 months ago in reply to Hidefumi Ishizawa

TI__Mastermind 22400 points

Ishizawa-san,

The device from the TI site should not have had any changes made.

I do not see any issue with the attached schematic.

If you pull the VDDOUT supply low, do you have communication with the device?

Thanks,
Kadeem
