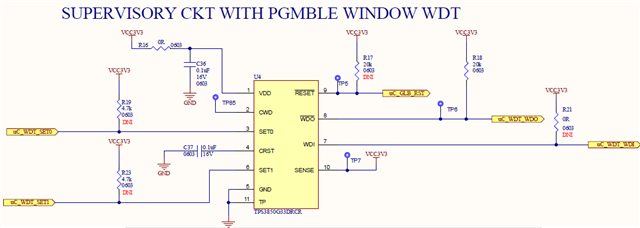

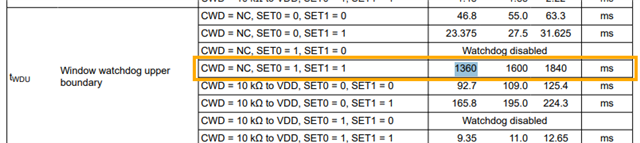

i am using this circuit to monitor the window of , is the design calculation ok? But i have one doubt if i am monitoring 3.3V & both VDD & sense pins are connected to the same, the circuit will be wrong right? If the VDD is 5V, sense pin monitoring is 3.3V means it is ok right?

20 days ago

0 Jesse Villanueva 20 days ago

TI__Mastermind 18600 points

Hi Meghna,

Having the SENSE pin monitoring the VDD rail is a valid configuration and is a typical use case for this device.

Jesse

0 Meghna 19 days ago in reply to Jesse Villanueva

Prodigy 135 points

Hi Jesse, if suppose Vcc3V3 goes bad the IC only will not work then how about the sense pin, in that case should we connect VCC5 to VDD pin and VCC3V3 to sense pin?

0 Jesse Villanueva 19 days ago in reply to Meghna

TI__Mastermind 18600 points

Hi Meghna,

If the VCC3V3 does not fall below the VDDmin, the device will stay functional. If there are concerns of the VCC3v3 going lower than 1.6V and the VCC5V is going to be more stable, then yes, use the 5V as VDD.

Jesse
