LMK1C1102: leakage

Tony Tsai

Part Number: LMK1C1102

Hi support team,

in our application: LMK1C1102 Y0 connect to SoC, Y1 via FPC to another system, this system have level shift with a pull up 1K resister to 1.8V, when this system power on, but our board still keep power off (without turn on power), we find leakage from Y1 go through to Y0 and VDD/1G (through pull up resister) detail see below table1 .

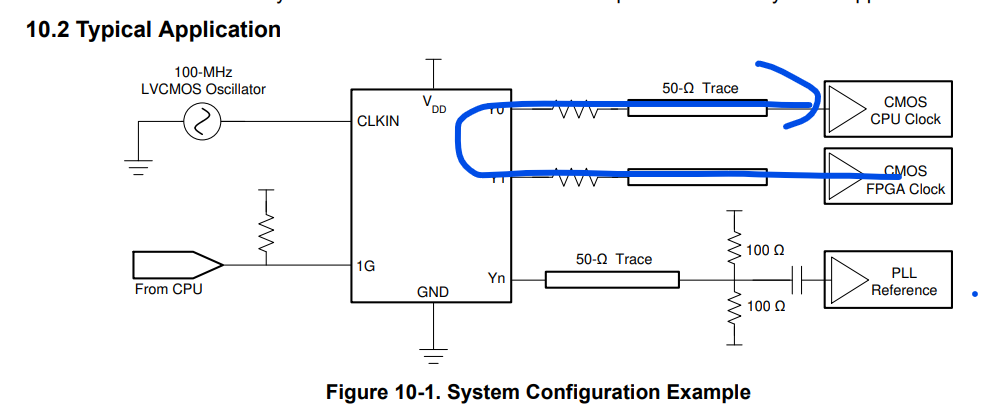

because we don't have LMK1C1102 of detail diagram, please help to check it is this chip limitation?

we want to avoid this issue

Table

another system	our board	Y1	Y0	VCC
ON	OFF	1.1V	0.5V	0.6V

6 days ago

0 Michael Srinivasan 5 days ago

TI__Genius 17371 points

Hi Tony,

Low on BW today. I will get to you tomorrow.

Thanks,

Michael

0 Tony Tsai 4 days ago in reply to Michael Srinivasan

Prodigy 10 points

Hi Michael,

Good day,

Do you have any progress and update?

BR,

Tony

0 Michael Srinivasan 3 days ago in reply to Tony Tsai

TI__Genius 17371 points

Hi Tony,

Our characterization of this phenomenon is limited, due to the fact that operation in this mode (applying a voltage to an output pin while the part is unpowered, or non-VDD any pin for that matter) will trigger the ESD diodes, leading to the leakage you have seen and damage long term. This operation should be avoided.
