LMK04828 PLL2 does not lock

toshi-e2e
Genius 4830 points
Other Parts Discussed in Thread: LMK04828, CODELOADER, DAC37J84EVM

Hi! all,

My customer reported that LMK04828 PLL2 does not lock.

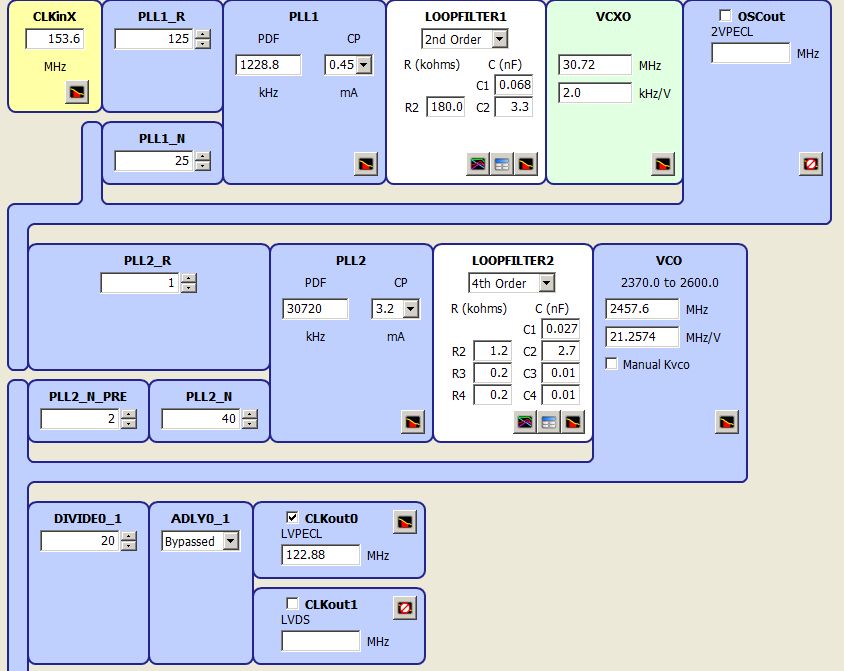

And they try to change some constants of loopfilter2, but still PLL2 does not lock,　and CPout2 is 0V.

Their configulation is as follows.
Could you please advise how to solve this problem?

Regards,
Toshi

  • 0
    TI__Genius 10320 points

    Hi Toshi,

    Is the device configured in dual PLL mode or is only PLL2 being used? If you could provide a .mac file generated by codeloader, we can further debug this issue.

    Is this being done on the EVM? What VCXO or reference to PLL2 is being used?

    Gabe

  • 0 in reply to Gabe Ayala
    Genius 4830 points

    Hi, Gobe-san,

    Thanks  for your support.

    Now, they are evaluating LMK04828 on both their own designed board and the DAC37J84EVM.
    In case of DAC37J84EVM, they used onboard 122.88MHz VCOX and OSCin is 122.88MHz.
    And when the PDF is set to 30.72MHz (as attached file [lmk04828test_PDF2_30720khz .mac]), the PLL2 did not lock.
    The Loopfilter2 cosntant is as follows;
     R2=1.2k,  R3= 0.2k R4=0.2k
     C1=27pF, C2=10pF, C3=10pF

    When the PFD is set to 61.44MHz (as attached file [lmk04828test_PDF2_61440khz.mac]) with the same Loopfilter2 constant,
    the PLL2 locked.

    I changed the attached file extention from .mac to .txt due to the E2E system.
    So, after downloading the files, please change the file extention.

    Regards,
    Toshi
