crystal controlled, settable frequency

David Nyce

Other Parts Discussed in Thread: CDCE913, CDCEL913-Q1, CDCE913-Q1

I have been looking through the parametric searches. I'm not sure what category the part I want would be. It might be called a clock generator, or a direct digital synthesizer, or a frequency generator, or a function generator, etc. I dont know the best category to call it. But I'm looking for an IC that would produce a square wave output at a selected integer frequency from 8 kHz to 160 kHz, with my micro controller being able to select the frequency. It should be crystal-controlled so that the selected frequency is accurate.

over 10 years ago

0 Arvind Sridhar over 10 years ago

TI__Mastermind 24205 points

Hi David,

Please take a look at the CDCE913 datasheet (link below) to see if this device will fit your needs.

http://www.ti.com/product/cdce913

Regards

Arvind Sridhar

0 David Nyce over 10 years ago in reply to Arvind Sridhar

Prodigy 200 points

Thanks. I forgot to mention that it needs to have an operating temp of -40 to 125C. The CDCE913 datasheet will take me a while to digest. With an 8MHz crystal, for example, will my microcontroller be able to set output 1 equal to any frequency from 80kHz to 160kHz during normal operation? Can output 2 be set at the same time to equal the frequency of output 1 divided by 100?

0 David Nyce over 10 years ago in reply to David Nyce

Prodigy 200 points

I meant 8 kHz to 160 kHz.

0 Arvind Sridhar over 10 years ago in reply to David Nyce

TI__Mastermind 24205 points

Hi David,

Take a look at CDCE913-Q1 or CDCEL913-Q1. These devices are automotive grade and have a wide temperature range of operation (-40C to 125C). The minimum VCO frequency is 80 MHz. There is a 10-bit output divider so the min output frequency is ~78 kHz.

Regards

Arvind Sridhar

0 David Nyce over 10 years ago in reply to Arvind Sridhar

Prodigy 200 points

Sounds like it might be OK, but I don't understand why you said the minimum VCO is 80MHz. For example, with an 8MHz crystal, how do I set the controls so the output is 8 kHz? Thanks.

0 Arvind Sridhar over 10 years ago in reply to David Nyce

TI__Mastermind 24205 points

Hi David,

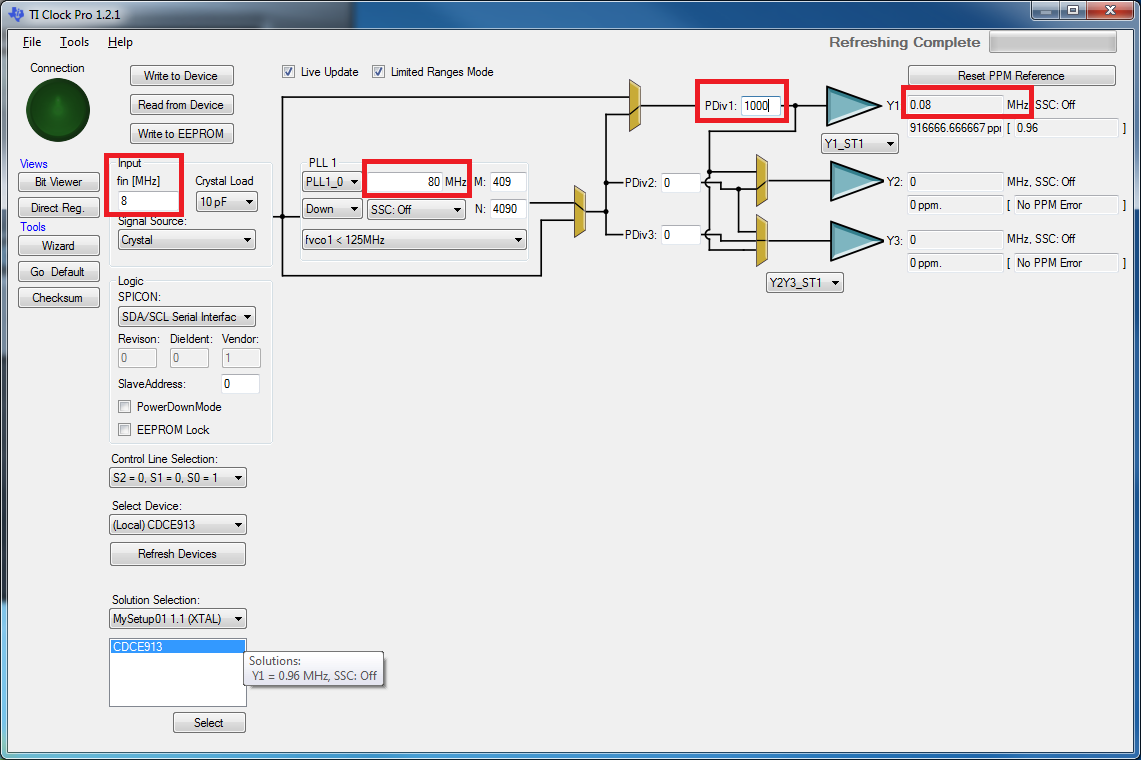

8 kHz is not achievable. With an 80 MHz VCO (min VCO frequency) and max output divider (1023), the min output frequency is limited to ~78 kHz. See example case below for 80 kHz synthesis from a 8 MHz Crystal.

0 David Nyce over 10 years ago in reply to Arvind Sridhar

Prodigy 200 points

Then that means it can't handle the application, because it needs to generate 8kHz to 160kHz.
