Hi,
I am planing on using the LMK04828 LVPECL outputs at 3.0GHz,
Can you provide any output amplitude vs frequency data, or plots for the LVPECL, LVPECL16 and LVPECL20 outputs?
Is there any phase noise data, or plots available on the DCLKoutX outputs running at 3GHz?
Thanks
Rich Mountain

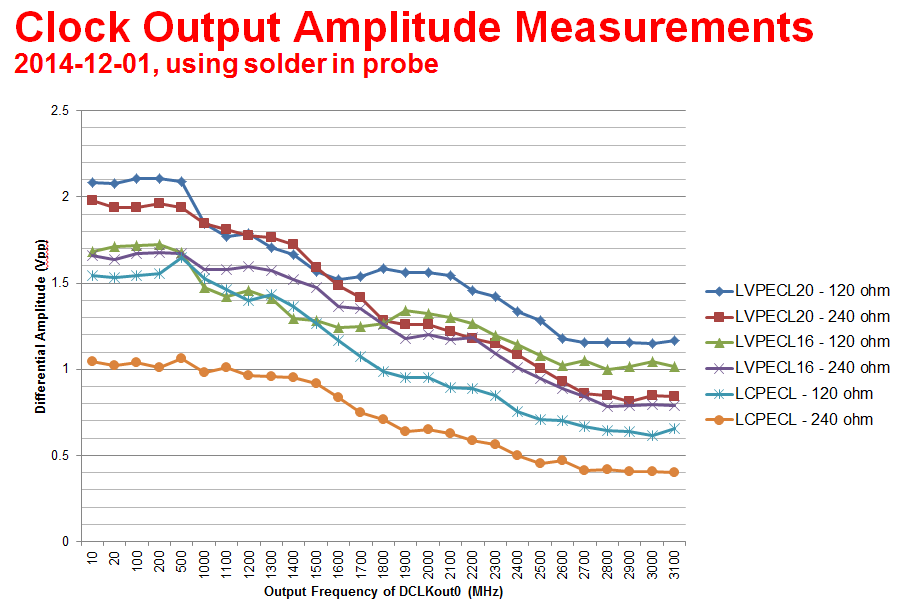

Please see image below for clock amplitude as measured by a solder in probe where the differential traces split from the PCB. This helps avoid the mismatch can is introduced by the narrow traces to SMA.

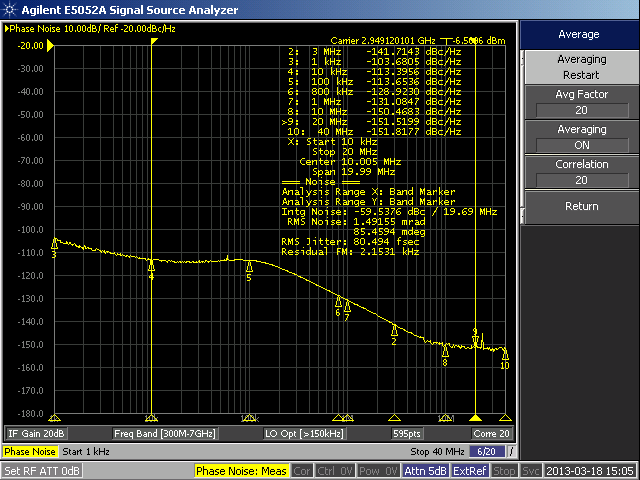

2949.12 MHz, CLKout0 LVPECL20, Div=2, Mux=Bypass, IDL=1, ODL=1; CLKout2 will give you a bit better noise floor.
73,
Timothy
