LMX2571: Two fanout outputs with same signal outputs

F.N

Part Number: LMX2571

Hi team,

My customer wants to use LMX2571 as two fanout outputs.

So, the customer asks how to set the T/R switch to be configured as a fanout buffer to out
the same signal at both RFoutTx and RFoutRx ports at the same time.

Please let me know the related register settings and the TrCtl pin setting.

Best regards,
Fumio Nakano

over 8 years ago

0 Timothy T over 8 years ago

TI__Mastermind 28560 points

Hello,

I've notified an engineer to respond.

0 F.N over 8 years ago in reply to Timothy T

TI__Expert 8760 points

Timothy-san,

Thank you for your cooperation.
I'll wait for the reply from the engineer.

Thank you!!

Best regards,
Fumio Nakano

0 Noel Fung over 8 years ago in reply to F.N

TI__Guru** 110570 points

Hi Nakano-san,

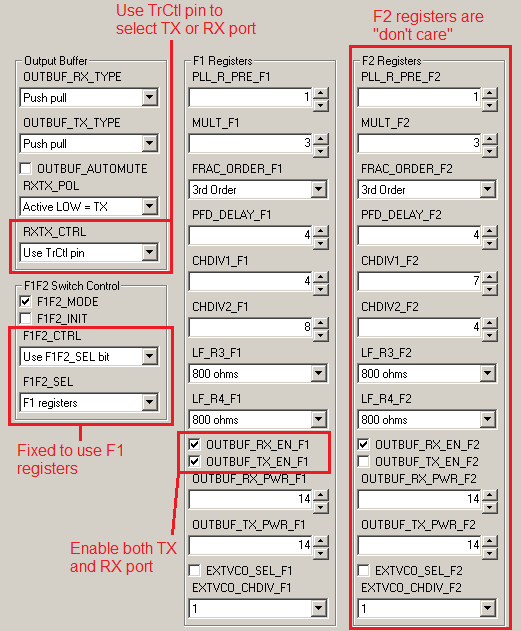

If both output frequencies are identical, you only need one register set (either F1 or F2 register set) but need to enable both TX and RX port.

For example,

BTW, are you working with Masaharu-san on this?

0 F.N over 8 years ago in reply to Noel Fung

TI__Expert 8760 points

Fung-san,

Thank you for your reply.
Your answer was very helpful.

Thank you!!

>BTW, are you working with Masaharu-san on this?
→ No.

Best regards,
Fumio Nakano
