LMX2594: Register settings

Toshiyuki

Part Number: LMX2594

Hi,

Our customer is evaluating LMX2594EVM. Could you provide the register settings for their system as follows?

Input:122.88MHz

Output:6631.36MHz

Best Regards,

Toshiyuki

0 Noel Fung over 7 years ago

Hi Toshiyuki,

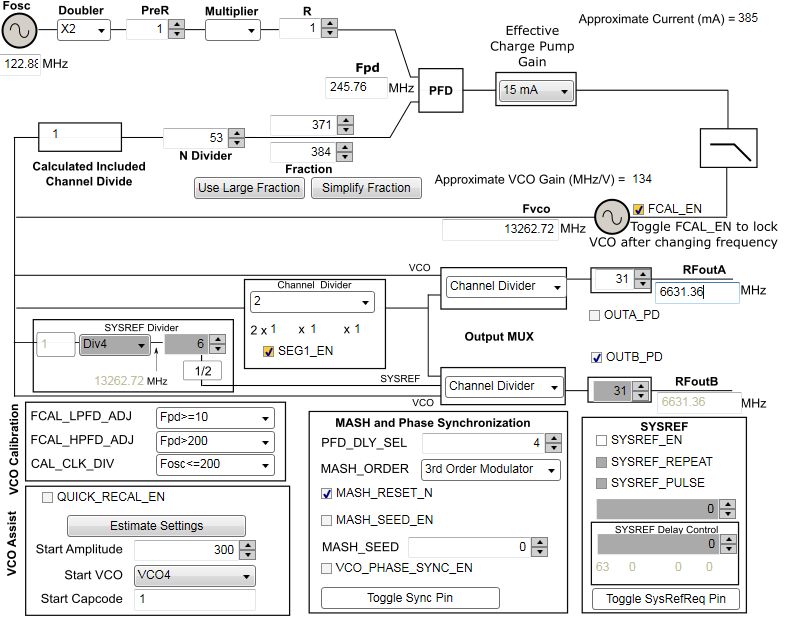

Please use TICS Pro to generate the register setting. Here is an example.

0 Toshiyuki over 7 years ago in reply to Noel Fung

Hi Noel,

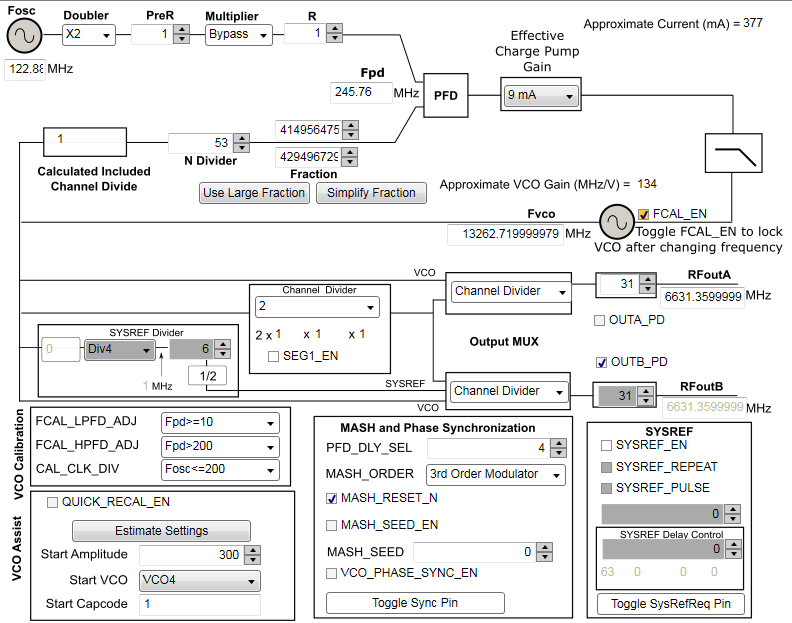

Thank you for the information. Is it better than the setting below?

Best Regards,

Toshiyuki

0 Noel Fung over 7 years ago in reply to Toshiyuki

Hi Toshiyuki,

You are in a fractional channel and if you make "exact" frequency output, you will get more spurs than my configuration.
