I have used the LMK00105SQ in my small board, right now, we want to design the test board to test my small board in the manufactory.

Could you please suggest how to provide the clock source to LMK00105SQ in my test board?

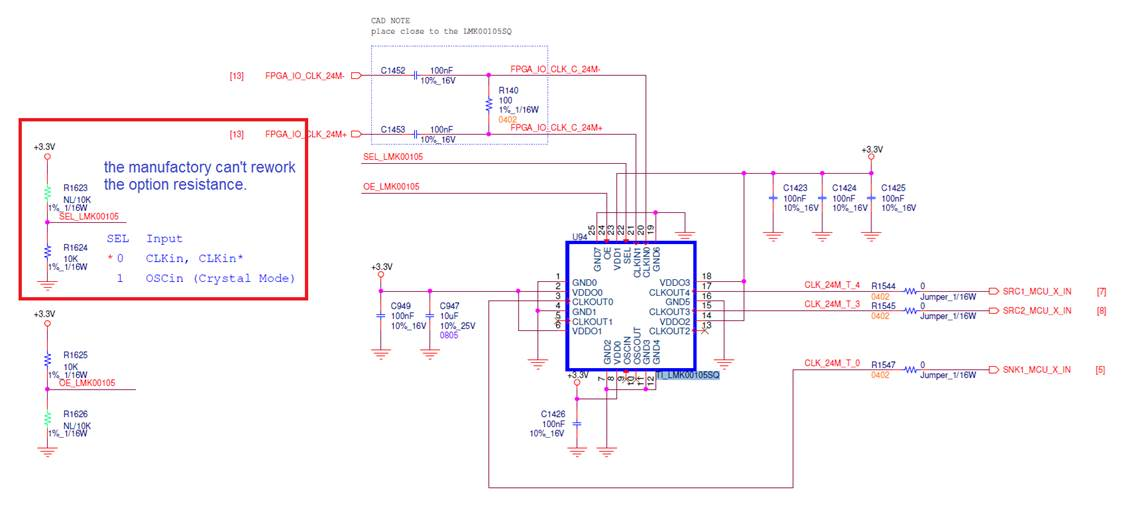

The snapshot is the LMK00105SQ circuit in the small board.

over 7 years ago

0 Alan O over 7 years ago

TI__Mastermind 32575 points

Your snapshot did not come through (broken link?). Can you please retry sending the image?

What is your clock source's frequency and driver signaling format?

Regards,
Alan

0 Jason Yeh98 over 7 years ago in reply to Alan O

Prodigy 20 points

I need a 24M Hz diff pair clock into the LMK00105, could you please provide sample solution to produce the clock?

0 Noel Fung over 7 years ago in reply to Jason Yeh98

TI__Guru** 107030 points

Hi Jason,

If you are looking for a differential clock source for use in the test board, you can use a 24MHz crystal (or crystal oscillator, XO) together with LMK00304. This device has four outputs, maybe you can test 4 small boards together at a time.
