CDCI6214: Datesheet & TICS PRO，ZDM feedback is different？

user4978070

Intellectual 270 points

Part Number: CDCI6214

HI,

I found that the ZDM feedback process , Datesheet is different from TICS PRO?

Thx.

over 7 years ago

0 Alan O over 7 years ago

TI__Mastermind 32575 points

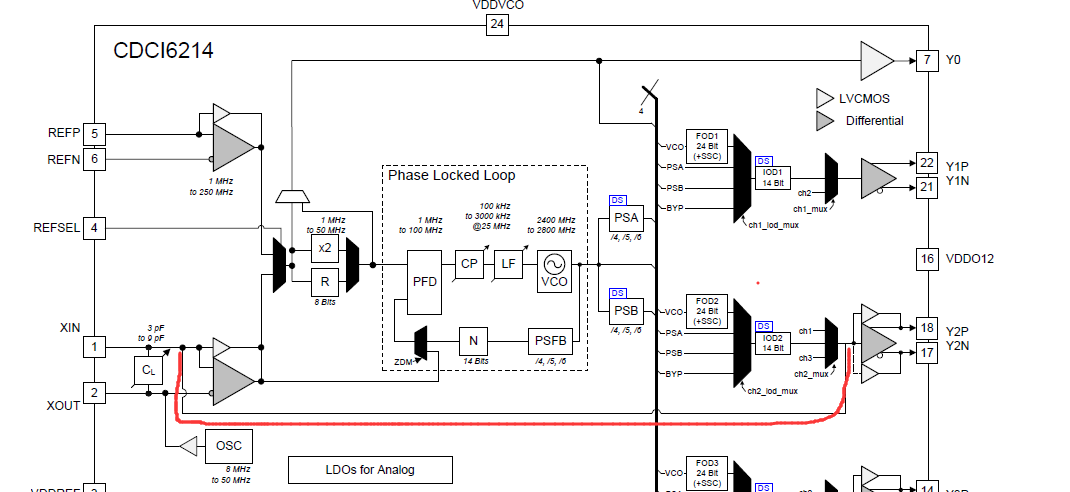

The datasheet block diagram in Figure 17 is a bit oversimplified. The PLL block diagram in Figure 19 shows more detail on the ZDM feedback path which is more inline with the TICS Pro block diagram.
