LMK00301: still have output without the VCC

Lacey Lin

Intellectual 2900 points

Part Number: LMK00301

Hi team,

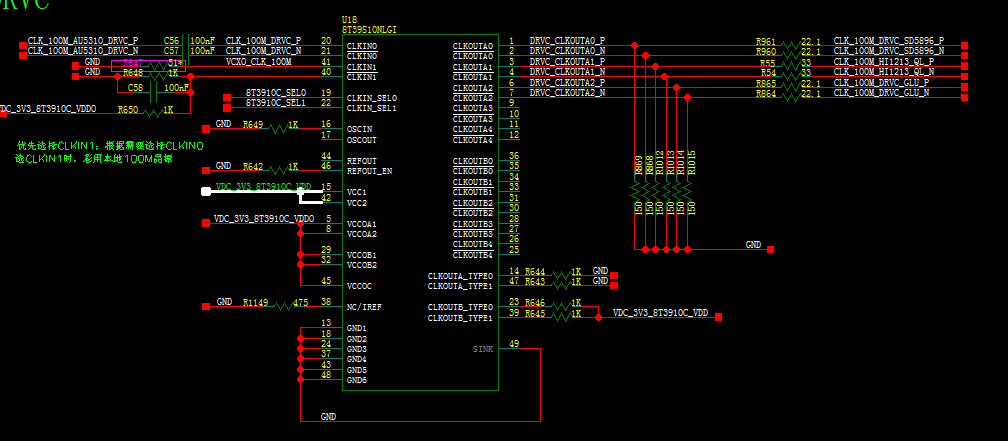

My customer use the LMK00301 as below:

because of the damage of magnetic bead in VCC, the system don't supply the VCC_3V3 to the device.

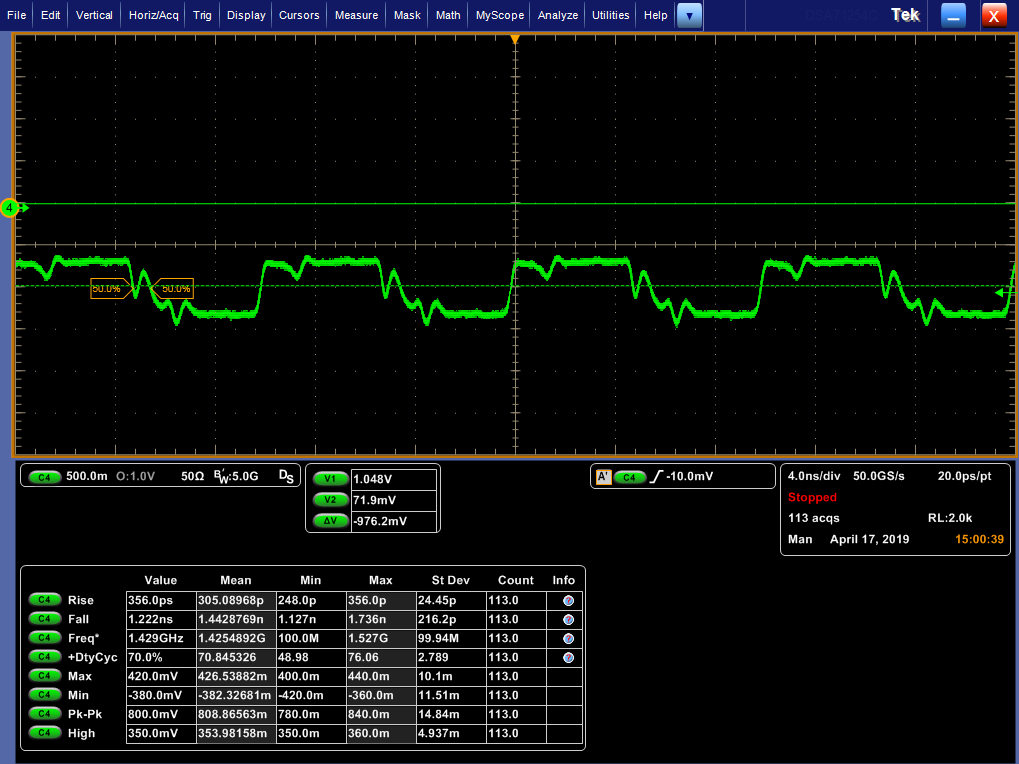

But the find there still have the clock output in the output pin as below:

Does this make sense?

Can you help to comment above finding?

Lacey

Thanks a lot!

over 6 years ago

0 Vibhu Vanjari over 6 years ago

TI__Genius 11900 points

Hello Lacey,

Does the system not supply all Vccx and Vccox pins, or just the Vcc1 and Vcc2 pins? Vcco for any output bank should be less than or equal to Vcc, so when Vcc is not supplied Vcco shouldn't either.

If there is no power at all going to the part, there should not be an output.

0 Lacey Lin over 6 years ago in reply to Vibhu Vanjari

TI__Intellectual 2900 points

Hi Vibhu，
If they supply the VCCox, but not Vccx, will this damage the device?
Also if they only supply the Vccox, but not Vccx will the output has the signal as I post above?

Lacey
Thanks a lot!

0 Vibhu Vanjari over 6 years ago in reply to Lacey Lin

TI__Genius 11900 points

Hello Lacey,

Since this is against the datasheet recommendation, yes, it is possible that the the device can be damaged when Vccox is supplied without Vccx.
