PLLATINUMSIM-SW: I want to insert VCO noise manually, but software not allowing me to do it.

Vinayak Chabbi

Part Number: PLLATINUMSIM-SW
Other Parts Discussed in Thread: LMX2594

Hi,

I want to insert VCO noise for LMX2594 device in PLLATINUM-SW, when click on Use metrics from VCO noise section, unable to enter the values.

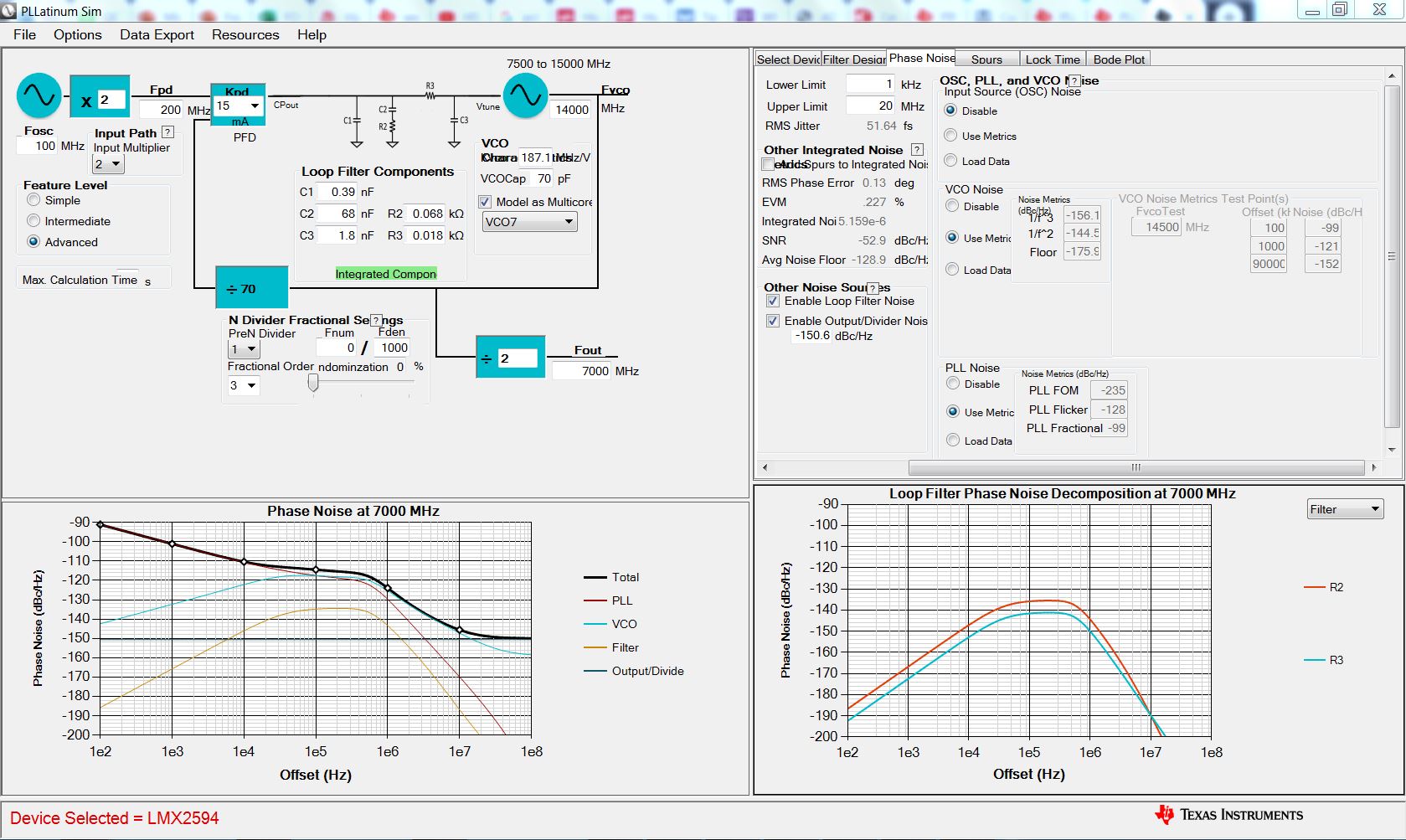

Attached snap shot of the SW.

over 6 years ago

0 Hao Z over 6 years ago

TI__Mastermind 18070 points

Hi Vinayak,

For LMX2594, the VCO is integrated so we don't expect the user to change VCO noise metrics. However, you can still import VCO noise profile (I think so). If you want to use custom version, please refer to this post: e2e.ti.com/.../741951

Regards,
Hao
