LMC555: data of LMC555IMX/NOPB

Masaharu Takahashi

Part Number: LMC555
Other Parts Discussed in Thread: TLC555,

Hi, Team.

I have been asked by Customer as below.

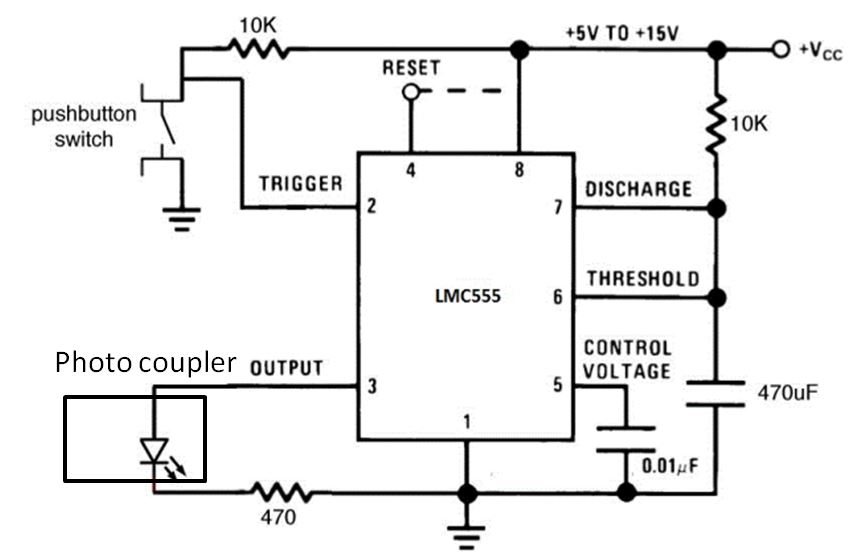

do we have the data which shows the relationship data between "voltage drop of Vcc-Voh" and Ioh?

Customer has concerned "how much IoH is bigger" impacts on voltage drop.

they want to know how much are there.

could you give us ?

0 Ron Michallick over 6 years ago

Hello Masaharu-san

I do not have this data, but I will have some data by the end of the week.

The TLC555 timer data sheet has this information in figures 5 & 6; would this format be acceptable?

In both timers, the output low can drive more current than the output high state.

0 Masaharu Takahashi over 6 years ago in reply to Ron Michallick

Hi, Ron-san.

Is TLC555 datasheet information same as LMC555?

How long does it take if we collect such a data ?

0 Ron Michallick over 6 years ago in reply to Masaharu Takahashi

Masaharu-san,

TLC555 and LMC555 are similar but not the same. I will have data ready for these by the end of the week. Is there a specific supply voltage in mind?

0 Ron Michallick over 6 years ago in reply to Ron Michallick

Masaharu-san,

Here is sample VOH/IOH and VOL/IOL data other samples may or may not be the same.

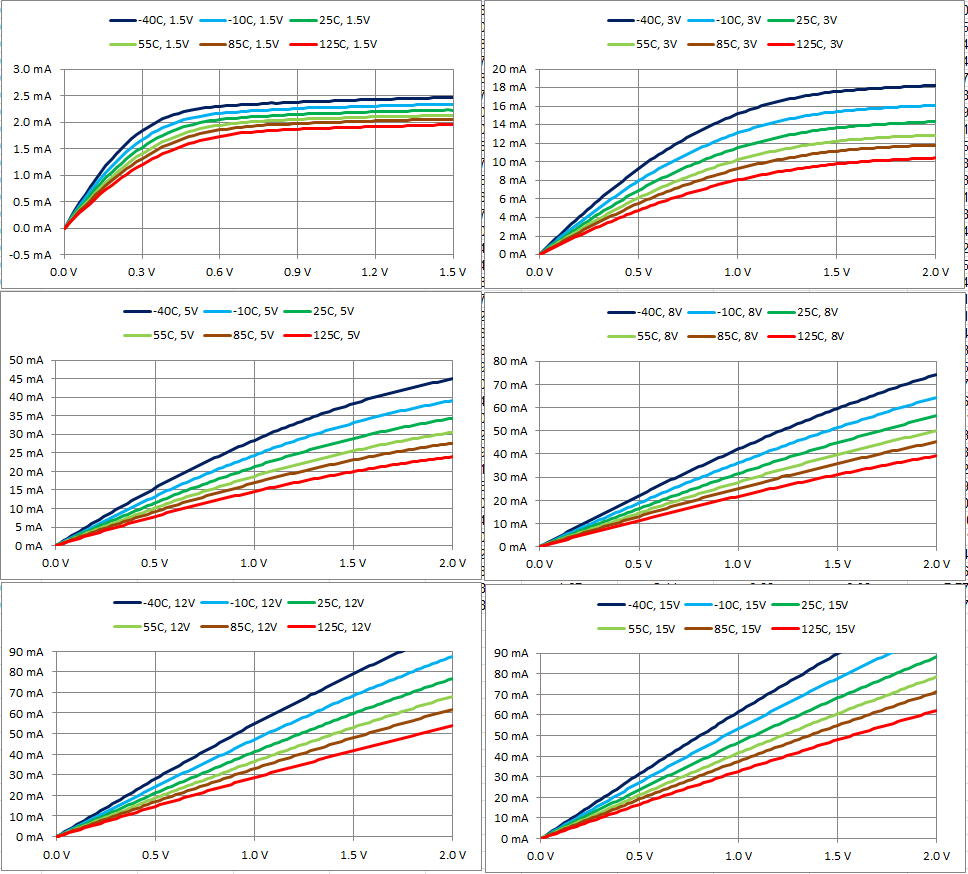

First is LMC555 VOL vs. IOL (6 temperatures, 6 supply voltages)

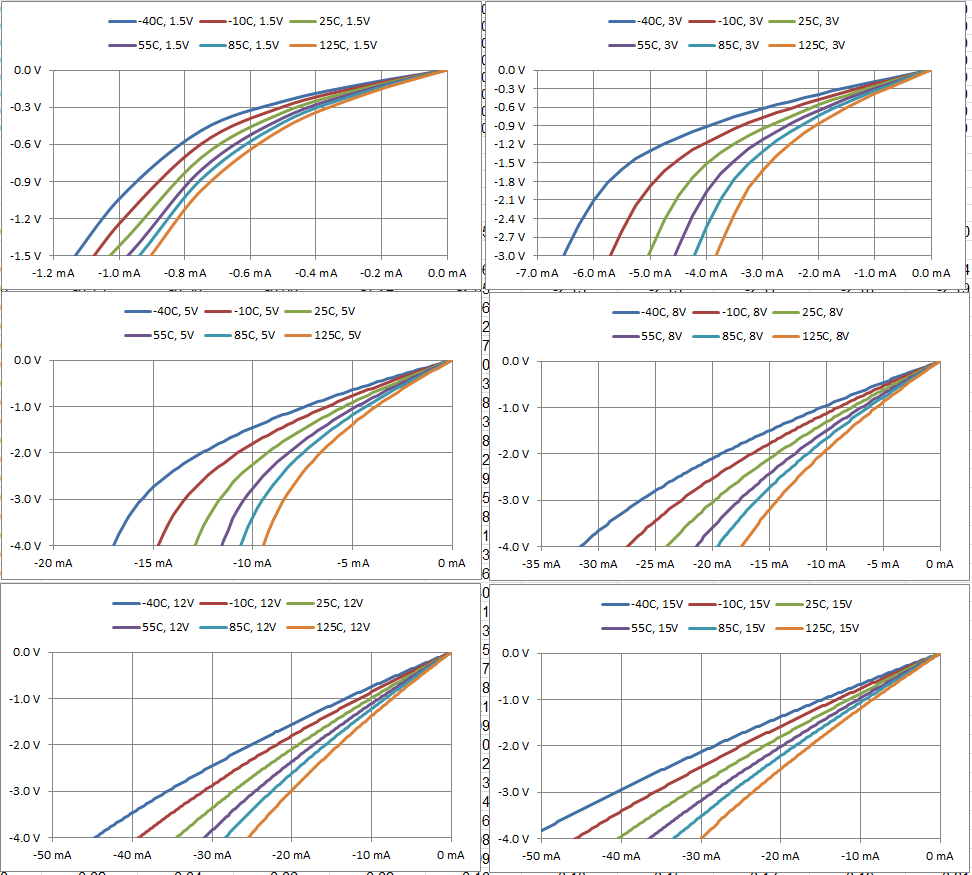

Here is VOH vs IOH (yes the axis are swapped compared to first VOL charts).

Once again, this is sample data.
