LMX2595: LMX2595 VCO Doubler in PLLatinum Sim

Geoffrey Kline1

Prodigy 20 points

Part Number: LMX2595

Does PLLatinum Sim v1.5.4.0 have capabilities for modeling the VCO doubler function in the LMX2595 device? If so, how?

Thanks.

over 5 years ago

0 Shawn Han over 5 years ago

TI__Genius 9920 points

No.

But you can input 0.5 for VCO divider, the tool can show the doubler result.

0 Geoffrey Kline1 over 5 years ago in reply to Shawn Han

Prodigy 20 points

Thank you for replying.

I understand what you're suggesting, and I went down that path, but the red fill in the Fout block made me wary.

What you're suggesting, and the results indicate, that the VCO doubler does not degrade phase noise by any more than ideal, +20log2, i.e., adds only 6.0dB.

That's a safe assumption?

Are there future plans to update the program to add VCO doubler?

0 Dean Banerjee over 5 years ago in reply to Geoffrey Kline1

TI__Mastermind 27981 points

Geoffrey,

Yes, PLLatinum Sim does support the doubler.

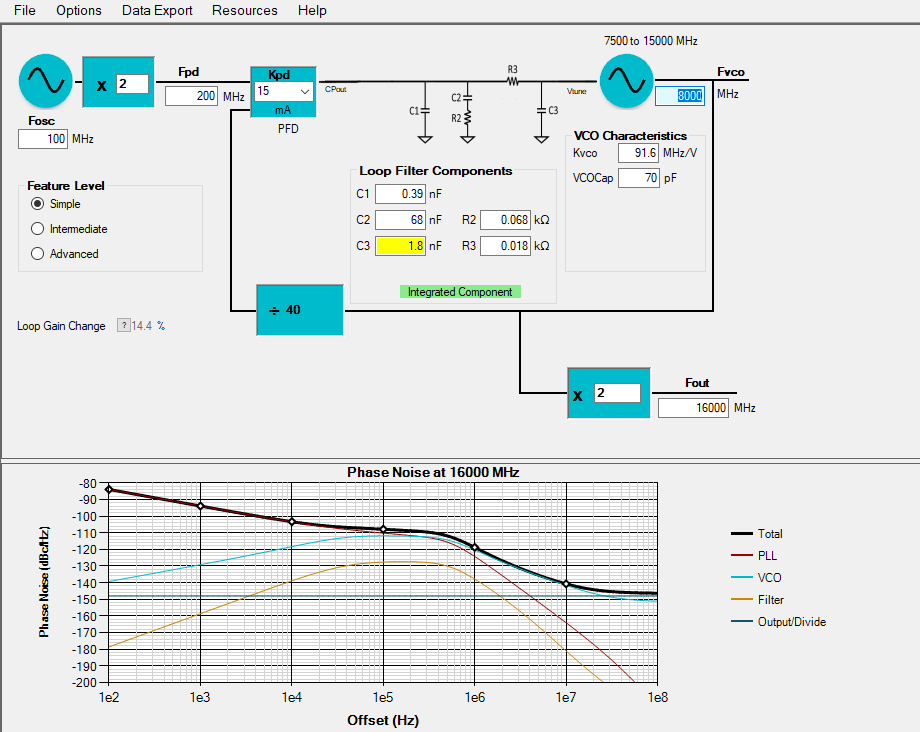

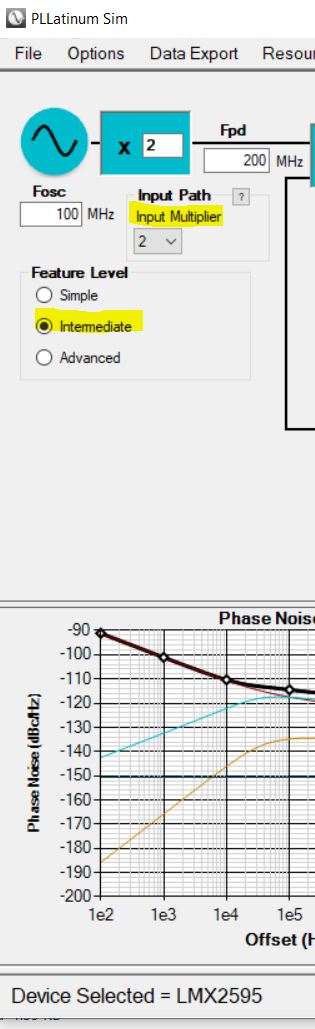

Also, you can click on the divide sign and it will change to a "x" sign.

Also, be aware that the doubler only works to 20 GHz.
