SE555: Accuracy over full temp.

Kengo.Y

Part Number: SE555

Hi team.

I'd like to know about accuracy over full temp for SE555.

According to data sheet, it said at only TA=25℃.
Do you have MIN/MAX accuracy over full temp?

I read Ron's thread.(https://e2e.ti.com/support/clock-and-timing/f/48/p/879112/3251945?tisearch=e2e-sitesearch&keymatch=SE555%20Accuracy#3251945)

Sincerely.
Kengo.

over 5 years ago

0 Ron Michallick over 5 years ago

TI__Guru**** 164656 points

Hello Kengo-san,

For SE555 use the typical 90ppm/C for typical. To get a min/max estimate double the value to 180ppm/C. Remember that this does not include the contributions made from the passive components in the circuit. At higher frequencies expect a little more variance.

0 Kengo.Y over 5 years ago in reply to Ron Michallick

Guru 11245 points

Hi Ron-san.

Thank you so much for your support.

How about "Initial error of timing interval" and "Supply-voltage sensitivity of timing interval" ?
If I want to know MAX/MIN as well, should I double TYP value?

Sincerely.
Kengo.

0 Ron Michallick over 5 years ago in reply to Kengo.Y

TI__Guru**** 164656 points

Kengo,

Yes, that should be a good estimate.

0 Kengo.Y over 5 years ago in reply to Ron Michallick

Guru 11245 points

Hi Ron-san.

I'd like to know more detail the variation for accuracy.
if you have any test results, could you share it?

Sincerely.
Kengo.

0 Ron Michallick over 5 years ago in reply to Kengo.Y

TI__Guru**** 164656 points

Kengo,

The only related data I have is control voltage sample data for a SE555 device.

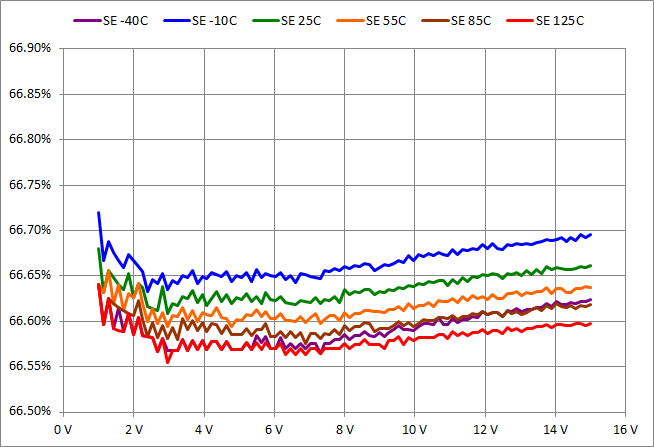

Control voltage percentage (Vcont/Vcc) versus Vcc at six temperatures.
