LMX2594: OSCin in common mode

Pavel Pershin

Other Parts Discussed in Thread: LMX2594

Hi team.

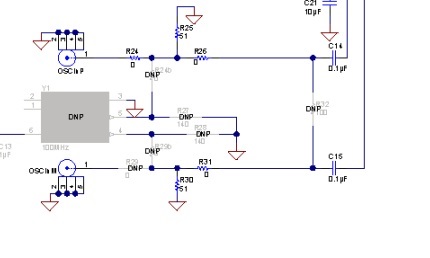

I want to use OSCin in common mode. In datasheet written: "Reference input clock (–). High impedance self-biasing pin. Requires AC-coupling capacitor." The lmx2594_EVM datasheet contain the folloing picture:

But i think it is possible an another connection:

Both inputs, OSCinP and OSCinM, are DC-coupled. Is it correct or I mistake?

over 5 years ago

0 Vibhu Vanjari over 5 years ago

TI__Genius 11900 points

Hello Pavel,

I recommend following the datasheet recommendation and connected AC-coupling capacitor.

Thanks,

Vibhu

0 Noel Fung over 5 years ago in reply to Vibhu Vanjari

TI__Guru** 107830 points

Hi Pavel,

OSCIN and OSCIN* pins has built-in biasing, AC-coupling is therefore required.

in your schematic, you need two AC-blocking capacitors on the right of R3259.

Clock & timing

Clock & timing forum

LMX2594: OSCin in common mode
