DP83TC811R-Q1: Bring up on custom board

Hello Balaji Kalakund

Thank you for the query.

I am trying to understand your question- are you having issues connecting i.mx  to the ethernet PHY or do you have some driver issue.

Regards,

Sreenivasa

Hi Sreenivasa,

I have connected the ethernet PHY to the imx. I'm trying to configure the PHY through software, but I'm unable to do it

Regards,

Balaji

Hello Balaji,

Thank you for the inputs.

Assuming the driver is correct let me check with you if you have tested the EPHY functionally.

Is there a schematics that i could review?

Regards,

Sreenivasa

Hi Sreenivasa,

The interface is up on the board with "eth0" name through ifconfig command as shown below

eth0      Link encap:Ethernet  HWaddr 1e:5b:20:72:a1:c9
          UP BROADCAST MULTICAST DYNAMIC  MTU:1500  Metric:1
          RX packets:0 errors:0 dropped:0 overruns:0 frame:0
          TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:0 (0.0 B)  TX bytes:0 (0.0 B)

Attaching the schematic snapshot of the PHY section for your review.

Regards,

Balaji

Hello Balaji,

Let me review the schematics.

In the meantime, can you help me understand if you have functionally tested the EPHY section.

What is the power supply, value, what is the supply ramp time, state of the reset during power up , is a reset being performed after power, oscillator working ok and clk out coming.

Regards,

Hi Sreenivasa,

I haven't tested the EPHY section functionality. Can you please guide me on how to perform the same?

Regards,

Balaji

Hello Balaji,

Thank you for the message. Can you please share a PDF schematics.

Regards,

Sreenivasa

Hi Sreenivasa,

Please find the schematics attached.

Regards,

balaji

DMS_IMX8X_SCHEMATIC_B_PHY.pdf

Hello Balaji,

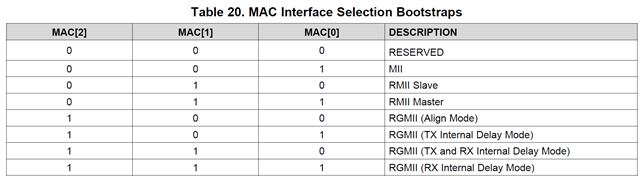

Please check the RGMII configuration on the MAC and configure the PHY straps accordingly.

Please check the power supply 1.8V and 3.3V.

Please check for clkout on pin 16.

Use PHYID as 0000 ( assuming there is only one device on the board) or change using RX_ER and RX_CTRL

Regards,

Sreenivasa

Hello Balaji,

Do you have some update.

Regards,

Sreenivasa

Hello Balaji,

Do you have some update. If not could you close the thread by pressing the resolved button.
