DP83869HM: Phy Link not up and Tx Clock is having only 100mV swing in MII mode (Continuation)

Shafna Basri K

Prodigy 20 points

Part Number: DP83869HM

Phy Link not up and Tx Clock is having only 100mV swing in MII mode

Since the thread is locked I am unable to reply to that.

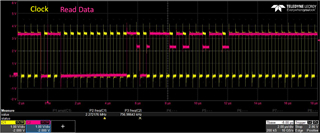

Actually I tried reading the registers. But the read register values are going to a metastable state. Image attached.

over 3 years ago

0 Hillman Lin over 3 years ago

TI__Mastermind 25955 points

Hi Shafna,

What is the value of pull up resistor on your MDIO pin? I cannot found them on the schematic you provided.
Is there any sharing bus on MDIO pin?

Regards,

Hillman Lin

0 Shafna Basri K over 3 years ago in reply to Hillman Lin

Prodigy 20 points

Hi Hillman,

The pull up resistor which I used is 1.5 k ohm. Also tried with 2.4k ohm.

There is no sharing bus on mdio pin.

Regards

Shafna

0 Hillman Lin over 3 years ago in reply to Shafna Basri K

TI__Mastermind 25955 points

Hi Shafna,

Are you able to Isolate MDIO and MDC in your schematics and get a launch pad for further debug? We have the USB and MDIO user guide to tell you the instruction on how to connect them. Here is the link for the user guide:

https://www.ti.com/lit/ug/snlu197/snlu197.pdf?ts=1650567365515&ref_url=https%253A%252F%252Fwww.ti.com%252Ftool%252FUSB-2-MDIO%253FkeyMatch%253DUSB%2BTO%2BMDIO

Regards,

Hillman Lin
