DP83TG720S-Q1: The software configuration for DP83TG720S-Q1

Hi Zhang,

1. Interrupts can be enabled through register 0x11, 0x12, 0x13 ,0x18. Pin 10 is not an interrupt pin.
2. The RX_CLK pin will become active when the device is set to RGMII mode via bootstraps. Have you checked the strap configuration? Please also measure the RX_CLK pin with an oscilloscope and verify the presence of a signal.

Thanks,

David

Hi,

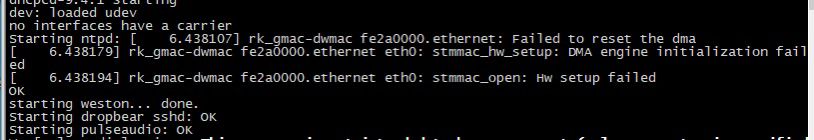

We can't get the RXCLK waveform, so please advise how the get it, thanks.

Hi David,

We can't get the RXCLK waveform, so please advise how the get it, thanks.

Hi Zhang,

Please read register 0x45D and let me know the value. This will show if the device is strapped for RGMII mode. Please also send the schematic so I can check the bootstrap configuration.

Thanks,

David

Hi David,

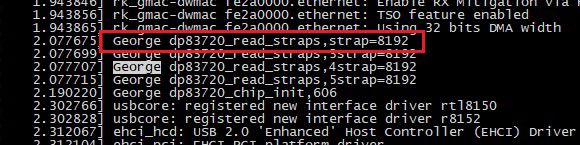

Please refer to the register 0x45D:

The schematic refer to below:

rk3568_dp83tg720.pdf

Hi Zhang,

I cannot see any strap resistors on pins 24, 25, 26. Are you setting RGMII mode via register write? I see in register 0x45D that RGMII is disabled. This would explain why the RX_CLK line is not toggling.

Thanks,

David

Hi,

The pin 25/26/27 is connect to the CPU and please advise is there are any error for our schematic?

We don't set the RMII from the register, thanks.

Hi Zhang,

The PHY requires external strapping resistors to set RGMII mode. Please see section 7.5 of the datasheet.

Thanks,

David

Hi David,

Please advise if we need to configurate the register when we ture on the network loopback, because the Gigabit network need to set the clock, thanks,

Hi Zhang,

What do you mean by "turn on network loopback"?

Thanks,

David

Hi David,

Please explain how to tell if the dp83tg720 is working properly,

Hi,

Are you able to transfer data? Is link up? Can you read/write registers? The device must be set to RGMII mode via straps.

Thanks,

David

Unable to obtain IP, i can not read/write registers, ifconfig command ：

root@rk356x:/# ifconfig
eth0 Link encap:Ethernet HWaddr 76:E6:C3:F9:06:89
inet6 addr: fe80::e5fc:4c1f:43ad:ada7/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:13 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:1534 (1.4 KiB)
Interrupt:52

lo Link encap:Local Loopback
inet addr:127.0.0.1 Mask:255.0.0.0
inet6 addr: ::1/128 Scope:Host
UP LOOPBACK RUNNING MTU:65536 Metric:1
RX packets:36 errors:0 dropped:0 overruns:0 frame:0
TX packets:36 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:2608 (2.5 KiB) TX bytes:2608 (2.5 KiB)

root@rk356x:/#

Hi,

Is the PHY on? We can perform the following initial checks:

1. Probe the power rails. Is the expected voltage present?
2. Probe the reset line. Is it high, indicating the PHY is out of reset?
3. Probe the CLKOUT pin. Is there toggling?

Please show me how you are attemping to read/write registers.

Thanks,

David

Hi David,

1. The voltage is normal
2. CPU to PHY reset frequency is high-low-high
3. Both RXCLK and TXCLK frequency is125MHz
4. I don't know how to attemping to read/write PHY registers.

Hi,

Please see the following FAQ for how to read/write registers using a linux terminal: https://e2e.ti.com/support/interface-group/interface/f/interface-forum/1164499/faq-how-to-read-and-write-ethernet-phy-registers-using-a-linux-terminal?tisearch=e2e-sitesearch&keymatch=%252520user%25253A491194#

Please send me a register dump from 0x0-0x1F once you can read registers.

Thanks,

David

Hi David，

Dump from 0x0-0x1F read registers.

0: 0x140
1: 0x141
2: 0x2000
3: 0xa284
4: 0x0
5: 0x0
6: 0x0
7: 0x0
8: 0x0
9: 0x0
10: 0x0
11: 0x0
12: 0x0
13: 0x401f
14: 0x5f41
15: 0x0
16: 0x4
17: 0xb
18: 0x0
19: 0x0
20: 0x0
21: 0x0
22: 0x100
23: 0x0
24: 0x8
25: 0x0
26: 0x0
27: 0x0
28: 0x0
29: 0x0
30: 0x0
31: 0x0

Thanks,

George

Hi George,

I see from the register dump that link is not up. Is there a link partner connected? Please let me know what is the link partner.

Thanks,

David

Hi David，

Now connect RJ45，dump from 0x0-0x1F read registers.

0: 0x140
1: 0x141
2: 0x2000
3: 0xa284
4: 0x0
5: 0x0
6: 0x0
7: 0x0
8: 0x0
9: 0x0
10: 0x0
11: 0x0
12: 0x0
13: 0x401f
14: 0x5f41
15: 0x0
16: 0x85
17: 0xb
18: 0xe400
19: 0x0
20: 0x0
21: 0x0
22: 0x100
23: 0x0
24: 0x3808
25: 0x400
26: 0x0
27: 0x0
28: 0x0
29: 0x0
30: 0x0
31: 0x0

Thanks,

George

Hi George,

I still see in register 0x1 that bit[2] is low, indicating there is no link. Is the DP83TG720 connected to another 1000Base-T1 link partner? If so, what is the link partner? Have you ensured that one unit is configured as master and one is configured as slave?

Thanks,

David

Hi David，

Now want DP83TG720 to connect to the Internet via converter, DP83TG720 without IP adder, ifconfig:

root@rk356x:/sys/devices/platform/fe2a0000.ethernet# ifconfig
eth0 Link encap:Ethernet HWaddr 76:E6:C3:F9:06:89
inet addr:169.254.133.227 Bcast:169.254.255.255 Mask:255.255.0.0
inet6 addr: fe80::e5fc:4c1f:43ad:ada7/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:54 errors:0 dropped:0 overruns:0 frame:0
TX packets:51 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:16710 (16.3 KiB) TX bytes:13590 (13.2 KiB)
Interrupt:52

lo Link encap:Local Loopback
inet addr:127.0.0.1 Mask:255.0.0.0
inet6 addr: ::1/128 Scope:Host
UP LOOPBACK RUNNING MTU:65536 Metric:1
RX packets:560 errors:0 dropped:0 overruns:0 frame:0
TX packets:560 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:34028 (33.2 KiB) TX bytes:34028 (33.2 KiB)

Now DP83TG720 connect computer，dump from 0x0-0x1F read registers.

0: 0x140
1: 0x145
2: 0x2000
3: 0xa284
4: 0x0
5: 0x0
6: 0x0
7: 0x0
8: 0x0
9: 0x0
10: 0x0
11: 0x0
12: 0x0
13: 0x401f
14: 0x5f51
15: 0x0
16: 0x85
17: 0xb
18: 0xec00
19: 0x200
20: 0x0
21: 0x0
22: 0x100
23: 0x0
24: 0x1808
25: 0x400
26: 0x0
27: 0x0
28: 0x0
29: 0x0
30: 0x0
31: 0x0

Thanks，

George

Hi David，

How is test throughput and Packet Loss ?

Thanks，

George

Hi George,

Iperf3 is a commonly used throughput testing tool for Linux.

Regards,

David

Hi David，

Can you give me an example for Iperf3 ?

Thanks，

George
