DS90UB954-Q1: I2C Target Alias on 935/954 pair fails to take set value

Hi Dhruv,

A few clarifying questions:

• I noticed from the RX_PORT_STS1 register that the receiver is not locked. Could you clarify what you mean by you're able to communicate with your remote serializer?
• For your remote sensor are you setting the TargetID and TargetAlias registers on the deserializer?
• For your application are you using both port 0 and port 1 on the deserializer or just one of them? If one port is being used which one?
• Lastly, is it possible for you to provide me your script?

Looking forward to your response,

Anthony

Hi Anthony,

Thanks so much for your feedback. Please find my responses inline:

• I noticed from the RX_PORT_STS1 register that the receiver is not locked. Could you clarify what you mean by you're able to communicate with your remote serializer?

IIUC,  RX_PORT_STS1 is the status of the receiver being locked to incoming video data. Is this not the case? My DEVICE_STATUS register shows 0xDF. Also, when I read the SER_ID I read back 0x30.

• For your remote sensor are you setting the TargetID and TargetAlias registers on the deserializer?

I was trying to, but when I try to do a read back from said TargetAlias, I cannot.

• For your application are you using both port 0 and port 1 on the deserializer or just one of them? If one port is being used which one?

Just port 0.

• Lastly, is it possible for you to provide me your script?

Absolutely, please find below:

from machine import Pin, I2C

i2c = I2C(0, scl=Pin(5), sda=Pin(4), freq=100000)

i2c.scan()

DEV_ADDR = 0x30

# Register Map
DEVICE_ID = 0x00
RESET = 0x01
GENERAL_CFG = 0x02
MASK_ID = 0x03
DEVICE_STS = 0x04

BCC_WATCHDOG = 0x07
I2C_CTRL1 = 0x08

RX_PORT_CTL = 0x0C
IO_CTL = 0x0D
GPIO_PIN_STS = 0x0E
GPIO_INPUT_CTL = 0x0F

FPD3_PORT_SEL = 0x4C
RX_PORT_STS1 = 0x4D

# Sensor status registers

SENSOR_STS_0 = 0x51
SENSOR_STS_1 = 0x52
SENSOR_STS_2 = 0x53

BCC_CONFIG = 0x58
SER_ID = 0x5B
SER_ALIAS_ID = 0x5C

AEQ_CTL2 = 0xD2

def ReadI2C(dev_addr, reg_addr):
  byte = i2c.readfrom_mem(dev_addr, reg_addr, 1)
  print(byte)
  return int.from_bytes(byte, "big")

def ReadRegister(reg_addr):
  byte = i2c.readfrom_mem(DEV_ADDR, reg_addr, 1)
  return int.from_bytes(byte, "big")

def WriteRegister(reg_addr, value):
  i2c.writeto_mem(DEV_ADDR, reg_addr, value)

def CheckLock():
dev_sts = ReadRegister(DEVICE_STS)
#print('Device Status %x' % dev_sts )
  if(dev_sts == 0xdf):
  print('Camera LOCKED')

# Reset
WriteRegister(RESET, b'x\01')

# General connection checks
print('Device Address %x' % ReadRegister(DEVICE_ID))
print('Mask ID %x' % ReadRegister(MASK_ID))

CheckLock()

# Read address of remote serializer
print('SER_ID %x' % ReadRegister(SER_ID))

WriteRegister(GENERAL_CFG, b'\x1e')
print('GENERAL_CFG %x' % ReadRegister(GENERAL_CFG))

print('BCC_WATCHDOG %x' % ReadRegister(BCC_WATCHDOG))
WriteRegister(BCC_WATCHDOG, b'\xff')
print('BCC_WATCHDOG %x' % ReadRegister(BCC_WATCHDOG))

print('RX_PORT_CTL %x' % ReadRegister(RX_PORT_CTL))
WriteRegister(RX_PORT_CTL, b'\x01')

print('GPIO_PIN_STS %x' % ReadRegister(GPIO_PIN_STS))
print('GPIO_INPUT_CTL %x' % ReadRegister(GPIO_INPUT_CTL))

# Enable RX/TX on port 0
WriteRegister(FPD3_PORT_SEL, b'\x11')
print('FPD3_PORT_SEL %x' % ReadRegister(FPD3_PORT_SEL))

print('RX_PORT_STS1 %x' % ReadRegister(RX_PORT_STS1))

print('SENSOR_STS_0 %x' % ReadRegister(SENSOR_STS_0))
print('SENSOR_STS_1 %x' % ReadRegister(SENSOR_STS_1))
print('SENSOR_STS_2 %x' % ReadRegister(SENSOR_STS_2))

WriteRegister(BCC_CONFIG, b'\xfe')
print('BCC_CONFIG %x' % ReadRegister(BCC_CONFIG))

ReadI2C(0x18, 0x00)

CheckLock()

Output Log

Device Address 60
Mask ID 20
Camera LOCKED
SER_ID 30
GENERAL_CFG 1e
BCC_WATCHDOG fe
BCC_WATCHDOG ff
RX_PORT_CTL 83
GPIO_PIN_STS 10
GPIO_INPUT_CTL 7f
FPD3_PORT_SEL 11
RX_PORT_STS1 40
SENSOR_STS_0 0
SENSOR_STS_1 0
SENSOR_STS_2 0
BCC_CONFIG 1e

FWIW, I have also tried the script here: https://e2e.ti.com/support/interface-group/interface/f/interface-forum/737135/ds90ub954-q1-how-to-set-i2c-alias-value (with my sensor addresses)

But the moment I write anything to FPD3_PORT_SEL, my I2C bus seems to get poisoned. That being said, SER_ALIAS_ID takes the value set when I write 0x01 to FPD3_PORT_SEL:

[48]
Device Address 60
Mask ID 20
Camera LOCKED
SER_ID 30
GENERAL_CFG 1e
BCC_WATCHDOG fe
BCC_WATCHDOG ff
RX_PORT_CTL 83
GPIO_PIN_STS 10
GPIO_INPUT_CTL 7f
FPD3_PORT_SEL 1
BCC_CONFIG 5e
RX_PORT_STS1 13
SENSOR_STS_0 0
SENSOR_STS_1 0
SENSOR_STS_2 3
BCC_CONFIG 5e
SER_ALIAS_ID 18
Camera LOCKED

Hi Dhruv,

Let's try making these changes to the script and see if we get desirable results.

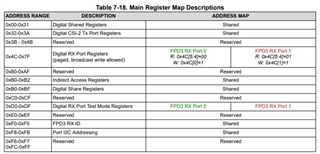

• If only port 0 is being used for your application let's set FPD3_PORT_SEL to 0x01. By setting FPD3_PORT_SEL to 0x01 you are enabling writes to port 0 registers and performing reads from port 0 registers. Originally, you had FPD3_PORT_SEL set to 0x11 which would be enabling writes to port 0 registers but performing reads from port 1 registers. On the 954 certain registers are port specific. For example, when you had FPD3_PORT_SEL set to 0x11 the RX_PORT_STS1 register was reading 0x40 indicating the receiver for port 1 is not locked. However, when you had FPD3_PORT_SEL set to 0x01 the RX_PORT_STS1 register was reading 0x13 indicating the receiver for port 0 is locked. The figure below shows registers 0x4C-0x7F and registers 0xD0-0xDF are port specific.

• Try reconfiguring your TargetID register and TargetAlias register. These registers are necessary in order to be able to communicate with a remote sensor. For example, you set your SER_ID and SER_ALIAS in order to be able to communicate with your remote serializer.
• Confirm your BCC_CONFIG bits [2:0] match your strap settings.
• Lastly, I would keep the BCC_WATCHDOG enabled as this helps to prevent a lock-up condition on the control channel when no response is available from the remote/remote-slave device.

Please let me know if these changes allow you to communicate with your sensor.

Best regards,

Anthony

Hi Anthony,

Thanks again for the suggested steps! So, I am now only doing two writes after startup, and have confirmed the BCC_CONFIG and BCC_WATCHDOG settings:

Device Address 60
Mask ID 20
Camera LOCKED
SER_ID 30
GENERAL_CFG 1e
BCC_WATCHDOG fe
GPIO_PIN_STS 10
GPIO_INPUT_CTL 7f
>>>Wrote 1 to 4c
FPD3_PORT_SEL 1
BCC_CONFIG 1e
RX_PORT_STS1 3
SENSOR_STS_0 0
SENSOR_STS_1 0
SENSOR_STS_2 3
>>>Wrote 50 to 5c
SER_ALIAS_ID 50
Camera LOCKED

However, when I try to do a read from the SER_ALIAS_ID I set in the end (I tried both 7b and 8b flavors of the address) I cannot seem to read.

ReadI2C(0x50, 0x00)

Traceback (most recent call last):
File "<stdin>", line 118, in <module>
File "<stdin>", line 44, in ReadI2C
OSError: [Errno 5] EIO

I feel like I am missing something very basic. Could this be related to clock stretching?

Dhruv

Hi Dhruv,

I see that you changed your BCC_CONFIG from 0x5E to 0x1E. Please leave BCC_CONFIG as 0x5E so that I2C Pass-Through is enabled. If I2C Pass-Through is disabled then you will not be able to communicate with your remote serializer and sensor.

Let me know the results.

Best regards,

Anthony

Hi Anthony,

I tried that too, but no joy unfortunately. I am still unable to do remote peek/poke from the serializer.

Device Address 60
Mask ID 20
Camera LOCKED
SER_ID 30

>>>Wrote 1E to 2
GENERAL_CFG 1e
RX_PORT_CTL 83
GPIO_PIN_STS 10
GPIO_INPUT_CTL 7f

>>>Wrote 1 to 4C
FPD3_PORT_SEL 1
RX_PORT_STS1 13
SENSOR_STS_0 0
SENSOR_STS_1 0
SENSOR_STS_2 3

>>>Wrote 5E to 58
BCC_CONFIG 5e

>>>Wrote 18 to 5C
SER_ALIAS_ID 18
Camera LOCKED

Thanks,

Dhruv

By the way, I also have local access to the serializer over a debug cable, and can confirm that the DESER_ID register (0x37) and the GENERAL_STATUS looks healthy too.

is DESER_ID 0x60
GENERAL_STATUS 0x45
