TUSB8041: TUSB8041IRGCR USB 3.0 and USB 2.0

Hi:

   Can you check

1: if SMBusz pin is high or low?

2:  Does crystal ocilating ?

3: What voltage on USB_VBUS ?

  Can you send schematic to us for review?

Regards

Brian

Hi Brian,

The I2C address we don't its correct or not some times its getting detected sometimes its not

Hi  RanjithKumar:

     The hub was not detected or just the modem was not detected ?

   Can you send schematic for review?

Regards

Brian

Hi Bran,

1: if SMBusz pin is high or low? It is high

2:  Does crystal ocilating ? There is no crystal oscillator.We providing the clock from SI5345 chip

3: What voltage  on USB_VBUS ? 0.65 V

Its not detected in I2C and lsusb also.

Hi  RanjithKumar::

   Is the clock 1.8v? and has <50 ps peak to peak jitter?

   Can you add 1uf on GRSTz ?

   If there pullup on SCL/SDA, can you remove it for debug purpose?

   Also please send page 13 and page 23 schematic.

Regards

brian

Hi Brian,

 Is the clock 1.8v? and has <50 ps peak to peak jitter? yes the clock is 1.8V

   Can you add 1uf on GRSTz ? We have added and checked

    If there pullup on SCL/SDA, can you remove it for debug purpose? Pull up removed and checked

There is no changes Brian

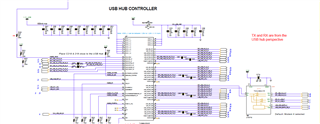

Page 13

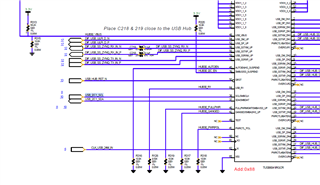

page 23

I have attached the booting logs also please find the attachment,
proto_boot_dmesg.txt

Hi:

   Let me take a look this weekend and maybe we need to have a call next week.

regards

brian

Hi Brian,

Sure ,Thanks for the reply.

Hi Brian,

Please schedule the meeting.We are stuck at this issue for past one week.

Mail ID - ranjithkumar.rajendhiran@vvdntech.in

Hi  RanjithKumar:

      Do you use webex or team for call?

     what time zone are you at?

Regards

Brian

Hi Brian,

Teams is fine for us i will add rest of my team members.

Time zone: Indian Standard Time(IST)

Hi  RanjithKumar:

      I have trouble to create team account/ maybe you can setup a call and invite me with x-zhou1@ti.com .

Regards

Brian

Hi Brian,

I am scheduling the call at 11:00 am (IST).Is it fine for you?

what time is  in India now?

Now its 10:54 am

really? here is 11:27pm in Dallas , why is different for minutes?

I think we are in different time zone.Can i schedule call?

Otherwise you can prefer your own timing

ok, we are almost mid night here, can you schedule sometime dallas time in the morning?

Regards

brian

Sure Brian.Can i schedule call at 9:00 am in Dallas time?

sure

okay thanks brian.We will schedule meeting.Thanks for the reply

Hi Brian,

We have found out like that hub detected

[ 3.882597] hub 2-0:1.0: USB hub found
[ 3.886368] hub 2-0:1.0: 1 port detected
[ 4.155014] usb 1-1: new high-speed USB device number 2 using xhci-hcd
[ 4.236596] st_lsm6dsx_i2c 0-006b: mounting matrix not found: using identity...
[ 4.244407] st-magn-i2c 0-001e: supply vdd not found, using dummy regulator
[ 4.251445] st-magn-i2c 0-001e: supply vddio not found, using dummy regulator
[ 4.259619] iio iio:device3: registered magnetometer lis2mdl
[ 4.265309] cdns-i2c ff020000.i2c: 400 kHz mmio ff020000 irq 38
[ 4.271904] ms5611 1-0077: supply vdd not found, using dummy regulator
[ 4.278539] iio iio:device4: failed to reset device
[ 4.283490] cdns-i2c ff030000.i2c: 400 kHz mmio ff030000 irq 39
[ 4.289825] cdns-wdt fd4d0000.watchdog: Xilinx Watchdog Timer with timeout 60s
[ 4.297341] cdns-wdt ff150000.watchdog: Xilinx Watchdog Timer with timeout 10s
[ 4.305021] cpufreq: cpufreq_online: CPU0: Running at unlisted initial frequency: 1199880 KHz, changing to: 1199999 KHz
[ 4.307303] usb 1-1: New USB device found, idVendor=0451, idProduct=8142, bcdDevice= 1.00
[ 4.318990] of_cfs_init
[ 4.323986] usb 1-1: New USB device strings: Mfr=0, Product=0, SerialNumber=1
[ 4.326439] of_cfs_init: OK
[ 4.333540] usb 1-1: SerialNumber: D8010061EA4F
[ 4.336459] cfg80211: Loading compiled-in X.509 certificates for regulatory database
[ 4.350288] mmc1: SDHCI controller on ff170000.mmc [ff170000.mmc] using ADMA 64-bit
[ 4.351020] mmc0: SDHCI controller on ff160000.mmc [ff160000.mmc] using ADMA 64-bit
[ 4.386468] hub 1-1:1.0: USB hub found
[ 4.390257] hub 1-1:1.0: 4 ports detected

But we have not getting manufacturer.we only getting the serial number is it correct?

We connected modem also it's not getting detected

Did you change anything to detect the hub?

Can you install USBVIEW  or lsusb -v to view more information?

Regards

Brian

We have connected the chip in our hardware.So it wont show more details like manufacturer.Whenever i give lsusb -v,lsusb and lsusb -vvv i got same output.
From the logs i have compared with the working with the logs from other TI forum.So its matched.Now its our modem is not getting detected.

Do you have any idea about that?

Can you send me datasheet of  USB Modem? Is it USB2? I need to understand how it works without Vbus.

Regards

brian

Hi Brian,

USB modem supports both USB2 and USB3.I will attach the datasheet.

rm520_modem_datasheet.pdf

Hi  RanjithKumar:

          TUSB8041 is detected below:

    4.307303] usb 1-1: New USB device found, idVendor=0451, idProduct=8142, bcdDevice= 1.00

for modem:

   1: did you configure as USB correctly?

2: did you meet power on sequence?

3: when model is power on, can you probe DP pin if DP is high?

Regards

Brian

Hi Brian,

   1: did you configure as USB correctly? It is output pin
2: did you meet power on sequence? PCIE is working fine.You have shared pcie reset.In our case pcie is working and usb only its not detecting
3: when model is power on, can you probe DP pin if DP is high? DP pin is low

Hi  RanjithKumar:

     When board is power on, can you reset hub by toggle GRSTz pin and see if Modem is detected?

If not, can you just  reset Modem by pin 67 RESET?

Regards

Brian

HI Brian ,

We are getting below error when board Turn on  also USB hub not detecting

usb usb1-port1: connect-debounce failed

I thought hub was detected before like this:

  4.307303] usb 1-1: New USB device found, idVendor=0451, idProduct=8142, bcdDevice= 1.00

What is  different  this time.

Regards

brian

Now we are added device tree both USB 0 and  USB 1 after that coming like this debouunce failed issue .

Actually device tree usb1

Also some time hub detection happening  when type  comments  "lsusb" after 1 min delay hub detecting , why this delay ?

Hi Venkatesa:

   Can we have a call again to get most updated status?

Regards

Brian

Hi Brain,

Yes sure we can set call ,please let me know your availability  time

It's dallas time 11:30 am now. You can schedule either at night time or morning time for Dallas time zone.

Regards

Brian

HI brian ,

we schedule meeting dallas time 10.30 Pm fine ?

HI Brain,

Please Confirm When Your Available 9AM Dallas TIme Fine ?

Sorry, I missed your meeting time, how about  tonight 9pm dallas time?

Regards

Brian

Hi Brian

Wat about 9.30 pm it's OK for u ?

ok, can you send link?

Ok

HI brain ,

My team account not working , Could please share your meeting link?

can you use webex?

ti.webex.com/.../x-zhou1

sure

let me know if you have any update.

Regards

Brian

Hi Brian,

Same issue we are facing . The  GRTz pin Voltage booting time going 3.3v after dipping getting 2V only. There is any impact?

can you show the waveform for GRSTz and 1.1v/3.3v?

Regards

brian

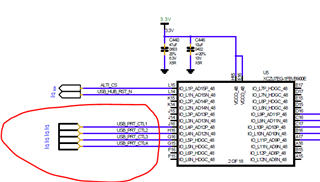

Please check the Below image

Hi:

  Min  Vih for GRSTz is 2V, so 2v may cause issue for system, Do you know what cause it drop to 2v? from SOC?

Regards

Brian
